Does anyone have a good illustration of how the WIPAC IGN/EMG & High/Low rotary switches work? I'm doing a total rewire of my '66 Jubilee and cannot work out which pins to connect each wire to, there is no references on the Jubilee wiring diagram. I've got new sockets & switches and numbered the pins 1-9 anti-clockwise, with pin#1 left of the gap in the terminals (when looking down onto top of switch). I've rung out the switch so I know which pins are connected in each switch position, but cannot align it with what I'm seeing on the wiring diagram!
Thanks
Roadholder April 2024
- Log in to post comments

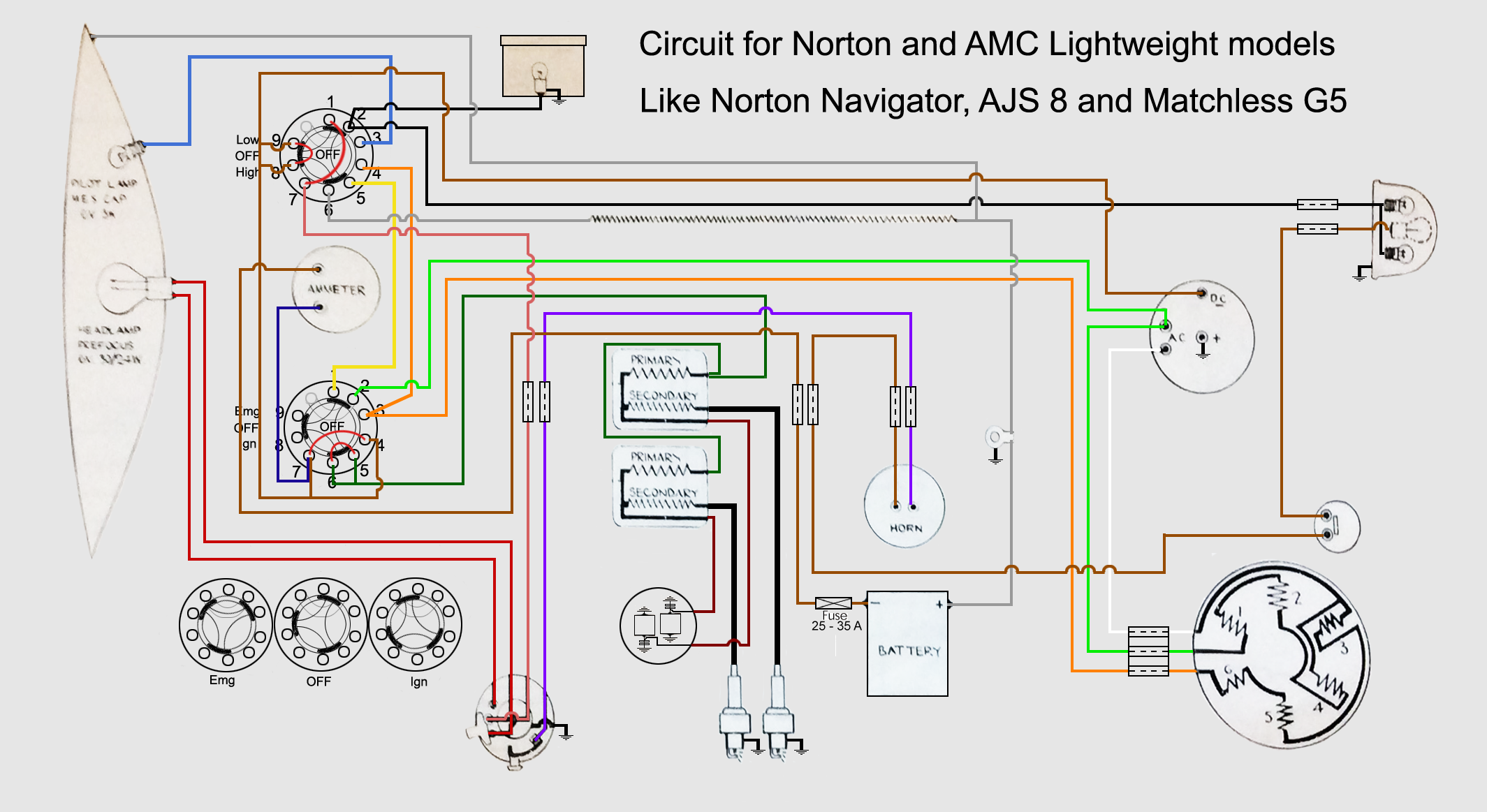

Follow the WIPAC
If you follow the WIPAC diagram it has a gap. You consider this gap from looking at the back/bottom of the switch. Also bear in mind that the two switches are identical. (fitted with different knobs)
- Log in to post comments
This RH had an excellent article about the Wipac switchgear.
Everything you could ever wish to know.
But I would say that wouldn't I.
Past issues are available on this website to members.
Peter
