I have just got to the wiring up stage with my 850. The bike seems to have most features of a mk3 but was in fact a late-ish 74 vintage.
I have got a new wiring loom for a mk2 on it now, The bike had 2 zeners one each side thats fine for the later machine and the two plate square rectifier.
My question is can I use this rectifier with just one zener? and what order/colour do the wires connect to it - from the large spade connector downward.
I may well be dim but from the wiring diagram it only tells (me) the colours not which spade they connect to. they
Any help as always greatfully received
Gary
Hi Gary, On the earlier Co…
- Log in to post comments
Previously wrote: Hi Gary,…
Previously wrote:
Hi Gary,
On the earlier Commando's the rectifier had 4 diodes in a bridge and one zener to do the regulating.
On the MkIII the rectifier had only two diodes and the pair of zeners were used as the other two arms of the bridge rectifier.
It may be that a previous owner has either upgraded to a full MKIII system or he may have fitted a pair of matched zeners.
If you can post a picture of the rectifier I can probably tell you which wire goes where.
Regards
Tony
Thanks for reply Tony,
Here is pic of rectifier, I have the second zener so I can install it if need be.
All best
Gary
Attachments
- Log in to post comments
Hi Gary, Sorry for the slo…
Hi Gary,
Sorry for the slow response, I am afraid the picture is too small to see what it really is.
If it looks like
You have a 'real' 850MkIII rectifier. This requires two Zeners.
Can you do a better picture ?
Regards
Tony
- Log in to post comments
If it looks more like:- ht…
If it looks more like:-
Then from the picture you can see the word 'stud' this goes toearthso is the positive.
The leg with the blue paint on is negative and will go off to the zener (or zeners) and then to the battery
The two yellow ones go to the aternator.
Hope that helps
Regards
Tony
- Log in to post comments
Previously wrote: If it lo…
Previously wrote:
If it looks more like:-
Then from the picture you can see the word 'stud' this goes toearthso is the positive.
The leg with the blue paint on is negative and will go off to the zener (or zeners) and then to the battery
The two yellow ones go to the aternator.
Hope that helps
Regards
Tony
Hi Tony thanks for that. Mine is not the same, it has Two plates with a large spade at top of post then three small spade connectors underneath all in a line vertically between the two plates. Two zeners were fitted so I now have put the second zener back in place, just not connected till I know the proper location. The pic will get a bit better with Ctrl and + But I will take another and post it anyway.
Once again cheers for input.
Gary
- Log in to post comments
Here is another image mate…
Here is another image mate, hope this is better.
All best Gary
Attachments
- Log in to post comments
Previously wrote: It is a…
Previously wrote:
It is a Lucas 83536
- Log in to post comments

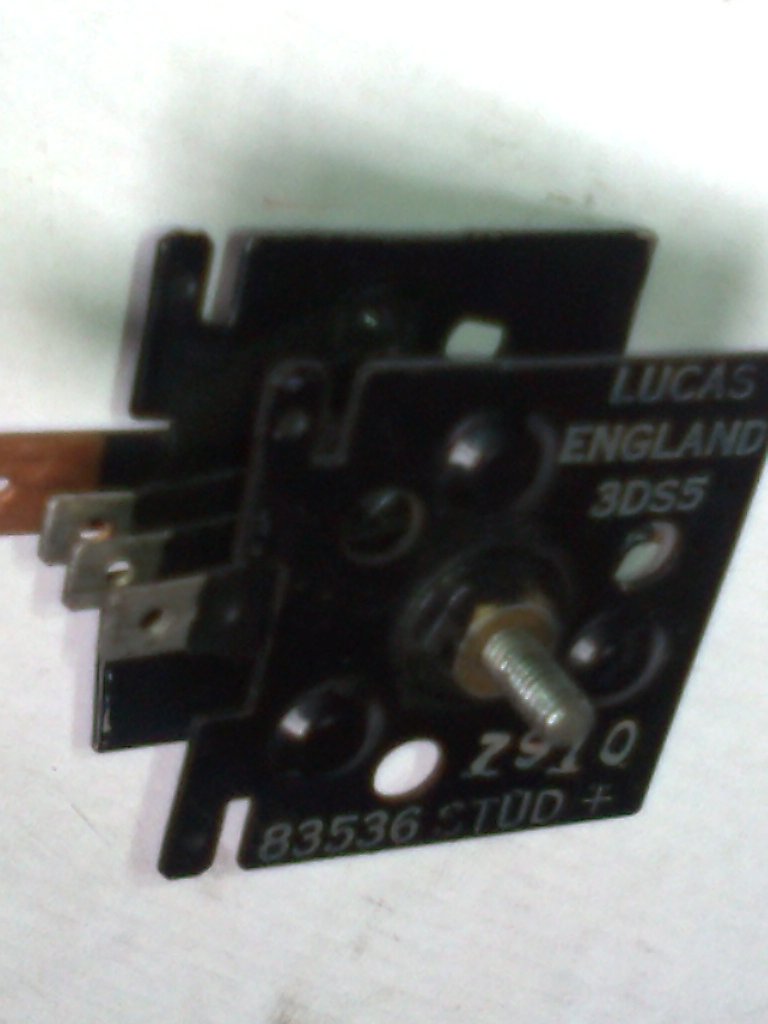

Hi Gary, It is a Lucas 3DS…
Hi Gary,
It is a Lucas 3DS5, this is a three phase rectifier for a 3 phase alternator. such as the RM24.
It looks like a previous owner has upgraded the charging system, the standard Norton loom will not have enough wires.
There is no reason why you should not use this setup, have a look at :-
http://www.britcycle.com/Manuals/1979%20Ignition%20&%20Charging%20Tests.pdf
As this may help.
What you should have is three wires coming from the alternator, these goes to the three middle tags on the rectifier. The stud / tag are + and go to ground, the final one is - and goes to the Zener diode (or diodes). If you have two zeners then these are simply wired in parallel. If possible try to keep the wire length from therectifierto both zeners the same length otherwise one zener will be doing all the work.
Let me know how it goes. If you want to talk direct on the phone, email me your number and I will call.
Regards
Tony
- Log in to post comments
Thanks Tony, That is reall…
Thanks Tony,
That is really helpful. My bike was originally an export police Interpol, so I guess the uprated alternator makes sense. and the two zeners fitted. The loom I took off was indeed different (more wires) the new loom is a standard 850 job. I thought I would do a belt and braces job and replace the loom as everything else was being done. perhaps I should have used the original as it ran fine before I took it to bits!! Ha ha.
All the best
Gary
- Log in to post comments
Although regulators and ze…
Although regulators and zeners are 'original', another way to control an alternator is with a modern 'power box'. If you have a three phase alternator then the three phase power boxes are ideal. Boyer supply one, but that is moderately expensive and mine has just recently decided to output at a slightly lower voltage and caused me some investigation to pinpoint the problem. I could have obtained all manner of power boxes from modern Japanese stuff, but I have found the 'power module' from Wylde to work perfectly. They advertise it for older Triumphs, because not many Commandos have the three phase alternator. It is very compact in size and costs around £28, which is half the price of alternatives.
I have the power box located behind the battery cover, reckoning that there should be enough free air circulating there, which makes an easy cable run to the alternator, and to the battery terminals, via a fuse.
I also recommend you fit one of Al Oz's multi-coloured diode ignition lights. It can replace the conventional charge indicator and has the massive benefit of the colour (red - orange - yellow - pale green - emerald green) relating to the voltage of the ignition supply.
Norm.
- Log in to post comments
Well thanks Norm, I reckon…
Well thanks Norm,I reckon I will save your advice for when/if it goes wrong. I am guessing that this mod is more reliable than the original ?? Mind you Reg/Rectifiers on Hondas (am I aloud to say H...a) don't seem that good. Does the diode light fit in the ign bulb holder?ThanksGary
- Log in to post comments
Er yes. Being the seller o…
Er yes. Being the seller of the BSDM as mentioned above they do indeed fit in a 14MM hole.
Now checking through the above I am pleased to say most of it is spot on. The two Zeners as used on the original MKIII and the JPN can be any old pair of Zeners but the two used on the three phase which are in parallel must be matched. If any one wants to have zeners checked then please get in touch I can do it, but of course to match them you really need half a dozen to select from! We do have the modern regulator/rectifiers for 3 phase as well.
AL Osborn
- Log in to post comments
Looks like I have some mor…
Looks like I have some more bits on the shopping list! The "only one more bit dear" is wearing thin on the wife! I am on the 18th 'one more part. Thanks all, for the help .
