1962 Dommie rear wheel fitting info

Submitted by peter_brown1 on Tue, 22/12/2020
Forums
Heavy Twins

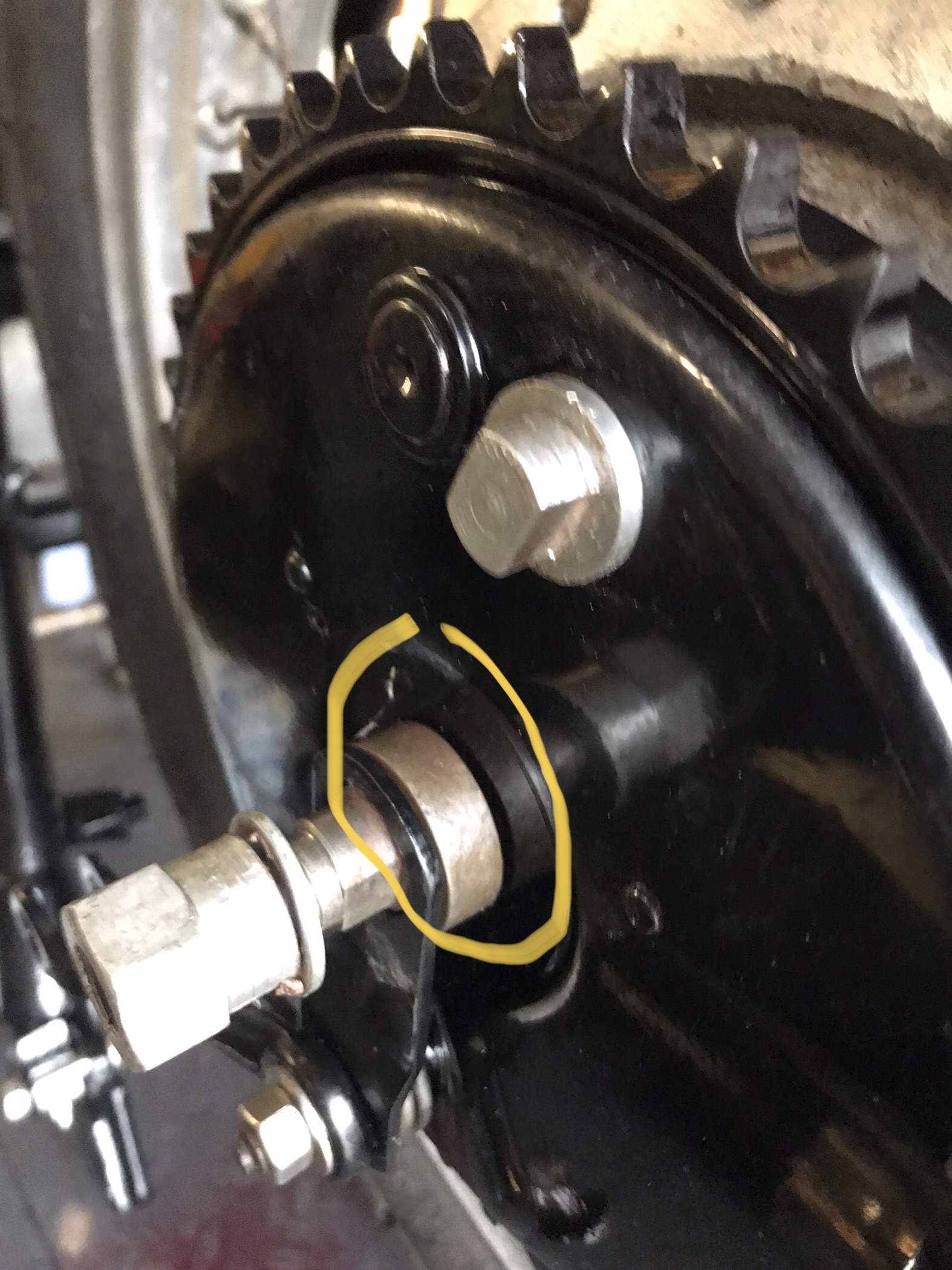

When the rear spindle nut is tight on the sprocket side is it correct that the spacer between the brake plate and swinging arm supposed to be free to allow the brake plate float very slightly? The shoulder on the stub axle is hard up against the inside of the swinging arm fork.

thanks

Attachments

Submitted by david_cooper on Wed, 23/12/2020

Permalink

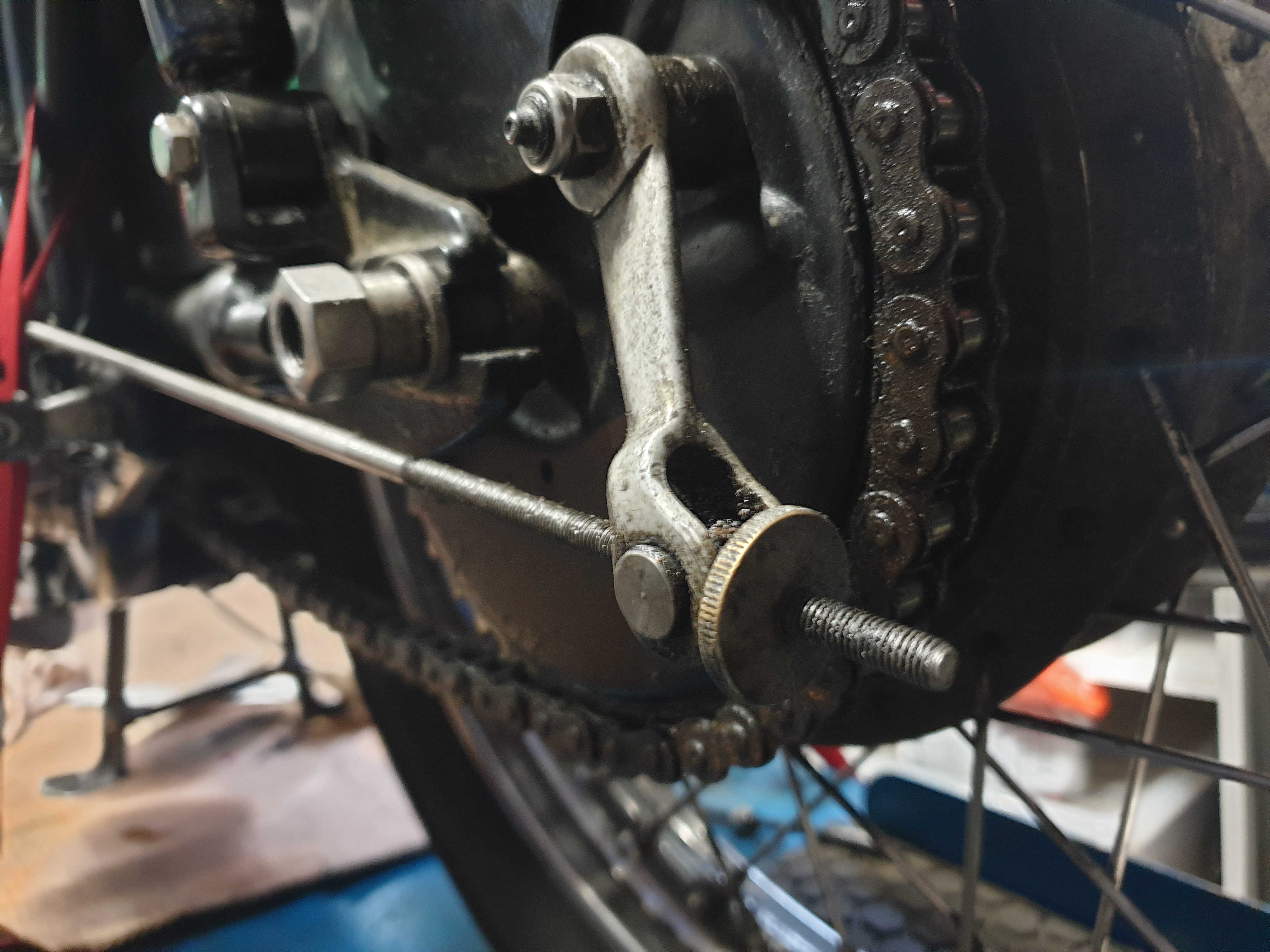

It's a confusing picture.  I can't see a Dommie swinging arm - and what's that steel bracket hanging down from the axle?  It's a lot thinner than the lug at the end of the swinging arm.

Submitted by ian_richtsteig on Wed, 23/12/2020

Permalink

Picture has misaligned backing plate but from what can be seen it looks like an early Commando rear with the extra torque arm and spring and not a 1962 type.

You could be right because I ordered a mew spacer and brake lever return spring for a featherbed and neither was right.the spacer was much thicker . The brake plate does have the boss with the flats that engage in the slot in the swingarm. The nut seems to pull up the stub axle tight against the swing arm fork where the flats on the axle terminate,but does not quite trap the brakeplate, maybe the spacer is slightly too thin, maybe someone could tell me what the spacer thickness could be if this is early Commando

thanks

Submitted by peter_brown1 on Wed, 23/12/2020

Permalink

I think now there should be a pen steel washer inside the brake plate against the stub axle shoulder i can see it listed in an exploded view

Submitted by george_arber on Fri, 25/12/2020

Permalink

Pardon my ignorance but what does the word ‘ pen ‘ mean in relation to a steel washer ?

George

Submitted by david_cooper on Fri, 25/12/2020

Permalink

'Pen' steel washer is the term used in all the literature for a hardened and ground steel washer. But question remains... why?

Submitted by ian_soady on Fri, 25/12/2020

Permalink

... that it means they're made from pen steel which as the name suggests was developed for making pen nibs. I can't verify this however.

Birmingham was of course the home for the world's biggest manufacturers making at one point in the 19th century half the world's steel nibs.

I agree with Ian, they are very thin spring steel type washers. If they were hardened, being so thin, they would just shatter when tightened against. Normally used against a felt washer to keep it in place.

Regards

Dick







Submitted by peter_brown1 on Thu, 31/12/2020

Permalink

Got the 0.025” shim washer from RGM. Fits between the inner face of brakeplate and stub axle shoulder, brakeplate now trapped and axle nut has a nice solid feel when tight. Also fitted the dished washer and felt ring as were missing

Submitted by tony_wood on Thu, 31/12/2020

Permalink

Hi Peter. Do you have an RGM part number for that 25 thou spacer washer please? I had a look on their web site but couldn’t find it. Thanks

Regards. Tony

Submitted by john_holmes on Thu, 31/12/2020

Permalink

OUTSIDE DIAMETER: 1.256  1 1/4"  (32MM)
INSIDE DIAMETER: .858  (21.8MM)
THICKNESS:  .025"  (.6MM)



https://www.rgmnorton.co.uk/buy/rear-wheel-dummy-spindle-pen-steel-washer_2708.htm

in

https://www.rgmnorton.co.uk/dept/drum-rear-hub_d01155.htm
