I have recently come across an old Norton gearbox. The number and letters read as:
Gearbox casing N8002 with and E stamped above and on the gearbox cover G5 A 49.
Does anyone have an idea what year and model this gearbox was for?.
Cheers
Alan
Norton Upright Gearbox
- Log in to post comments
See singles tech pages
This may help, pending more expert comment:
https://www.nortonownersclub.org/support/technical-support-singles/gear-identification-1939-to-1945
- Log in to post comments
And here's my query in this area

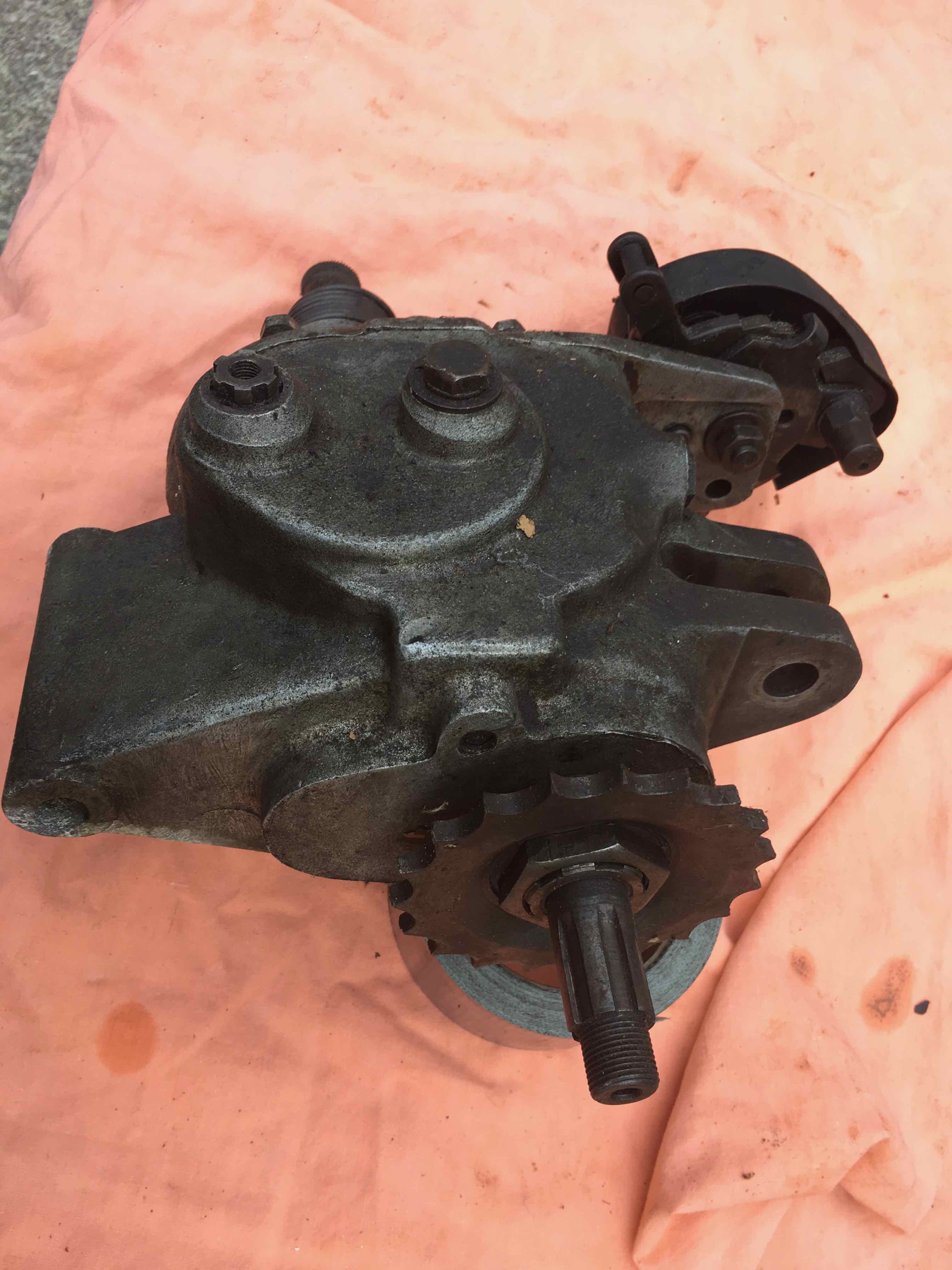

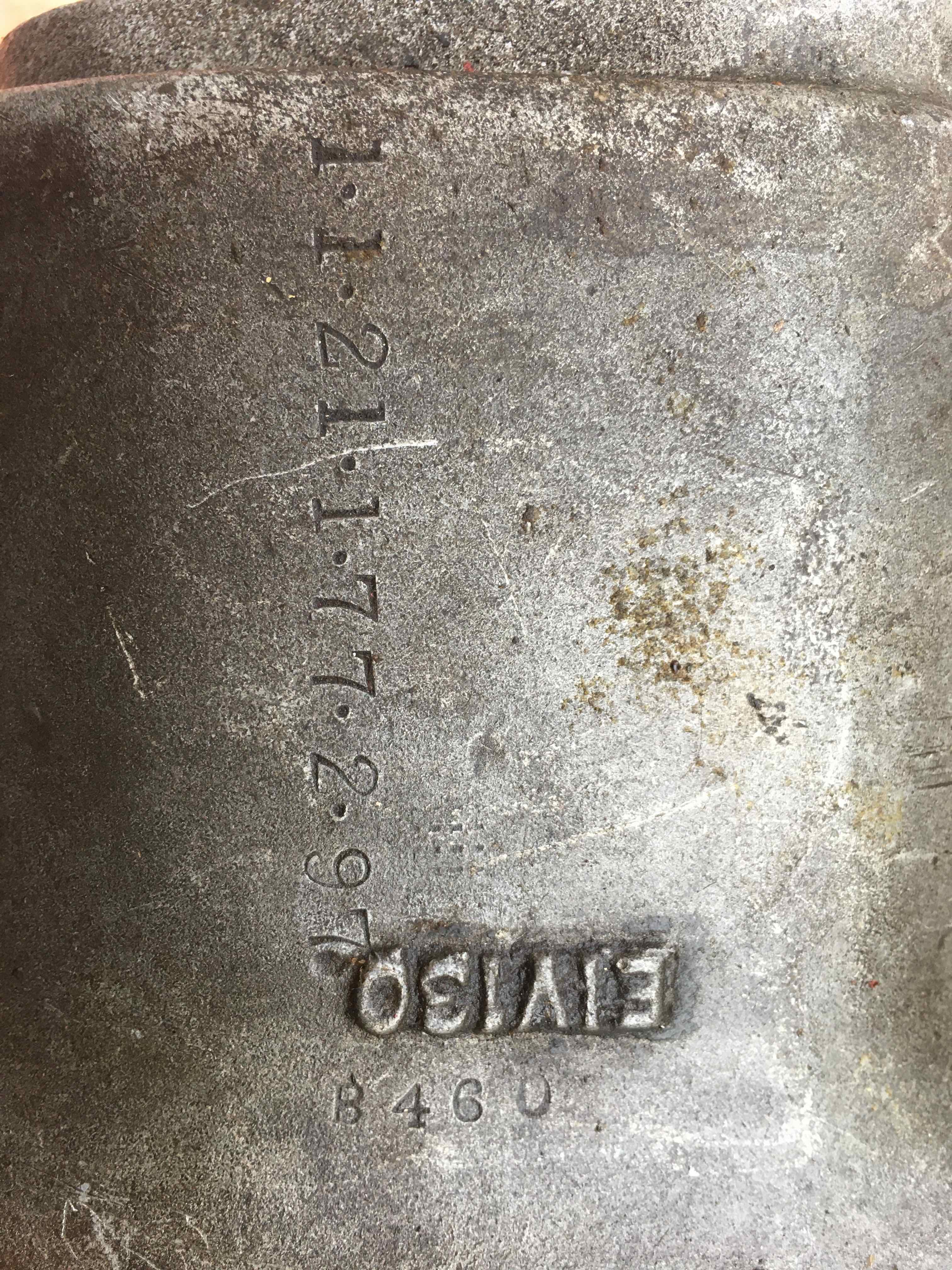

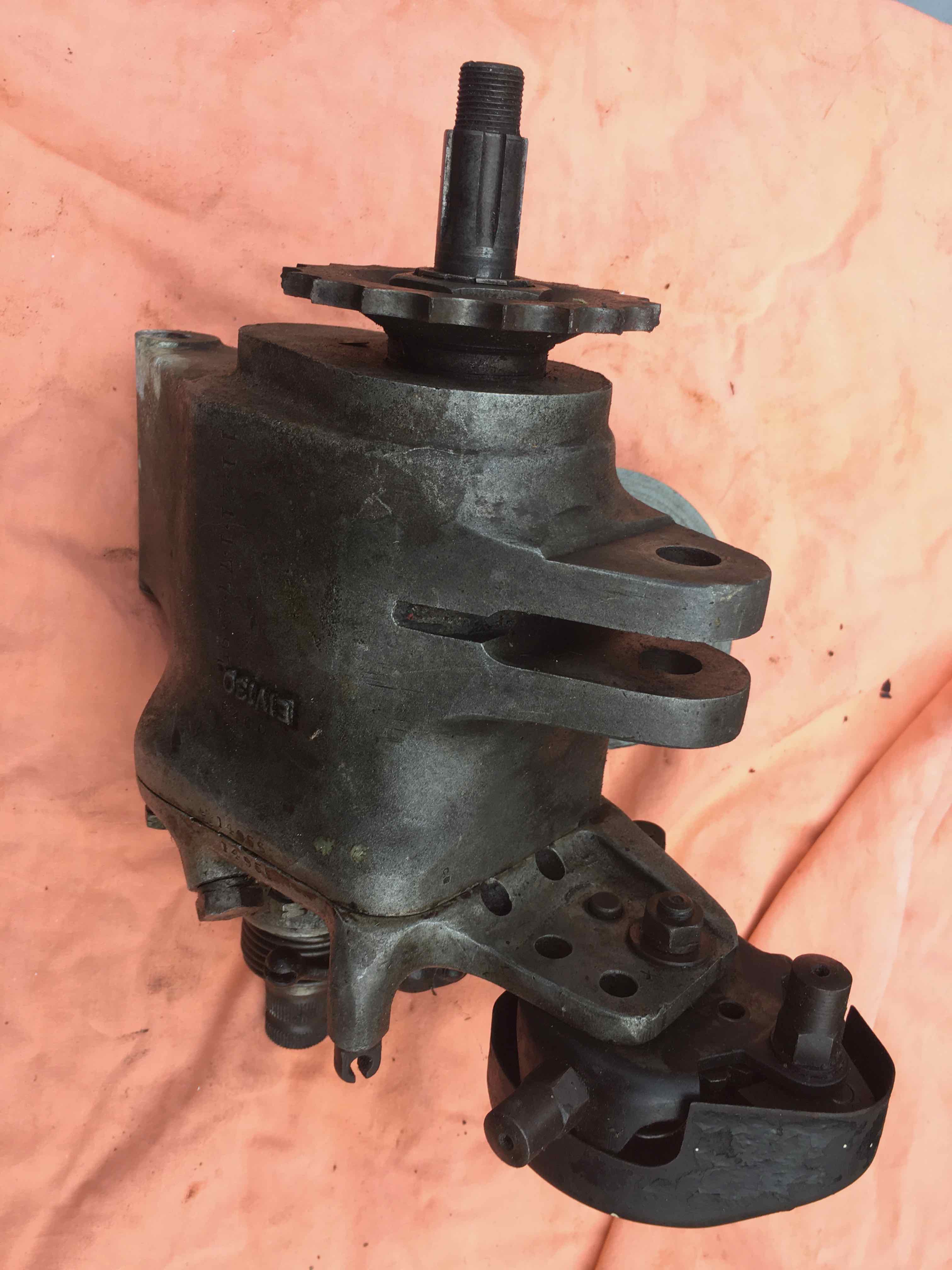

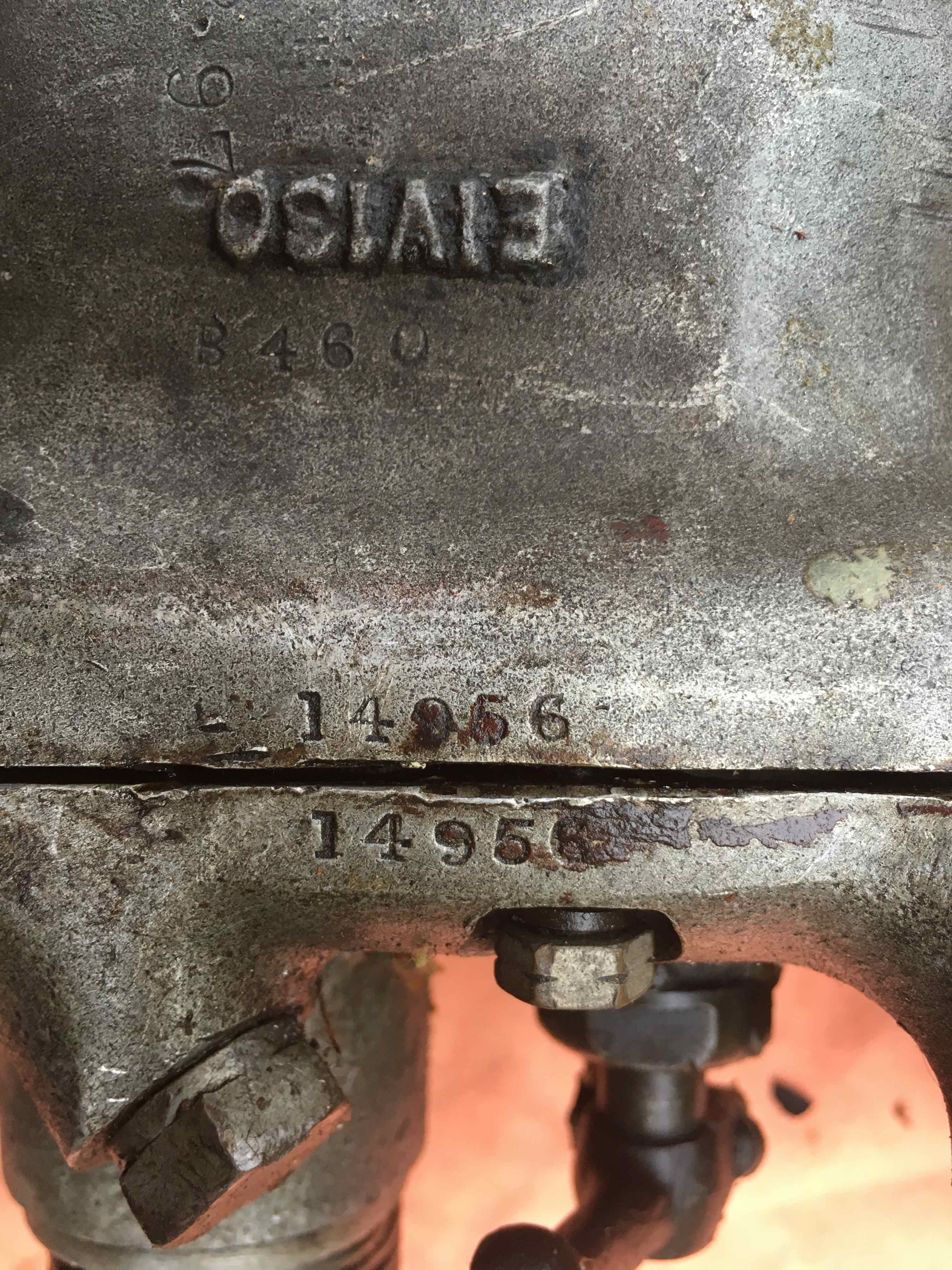

I have the box shown in the attached pix: the identification page noted in my previous comment confirms that it's a Sturmey Archer box, but any further info would be welcome.
- Log in to post comments
Sturmey Archer gearbox.
Hi Julian,
Your gearbox is a 4 speed standard ratio S.Archer from circa 1932/3 and looks like it probably had the S/A 6 spring clutch and would need the engine shaft shock absorber. This 'box would have been fitted to an ES2 or CS1.
Alan,
Do you have any photos of your gearbox ?
- Log in to post comments
S-A gearbox
Thanks for that info, Richard. Next task is to sort through the assortment of spare gears that accompanied it to see what I have.
If the singles gear identification page doesn't provide answers I shall be back !
- Log in to post comments
EIV gearbox
Have you still got this gearbox Julian? Would you sell it? Or has anyone else got one for sale?
- Log in to post comments
The number is N8001 E of course, not N8002 E, clumsy fingers.
