New member's Navigator

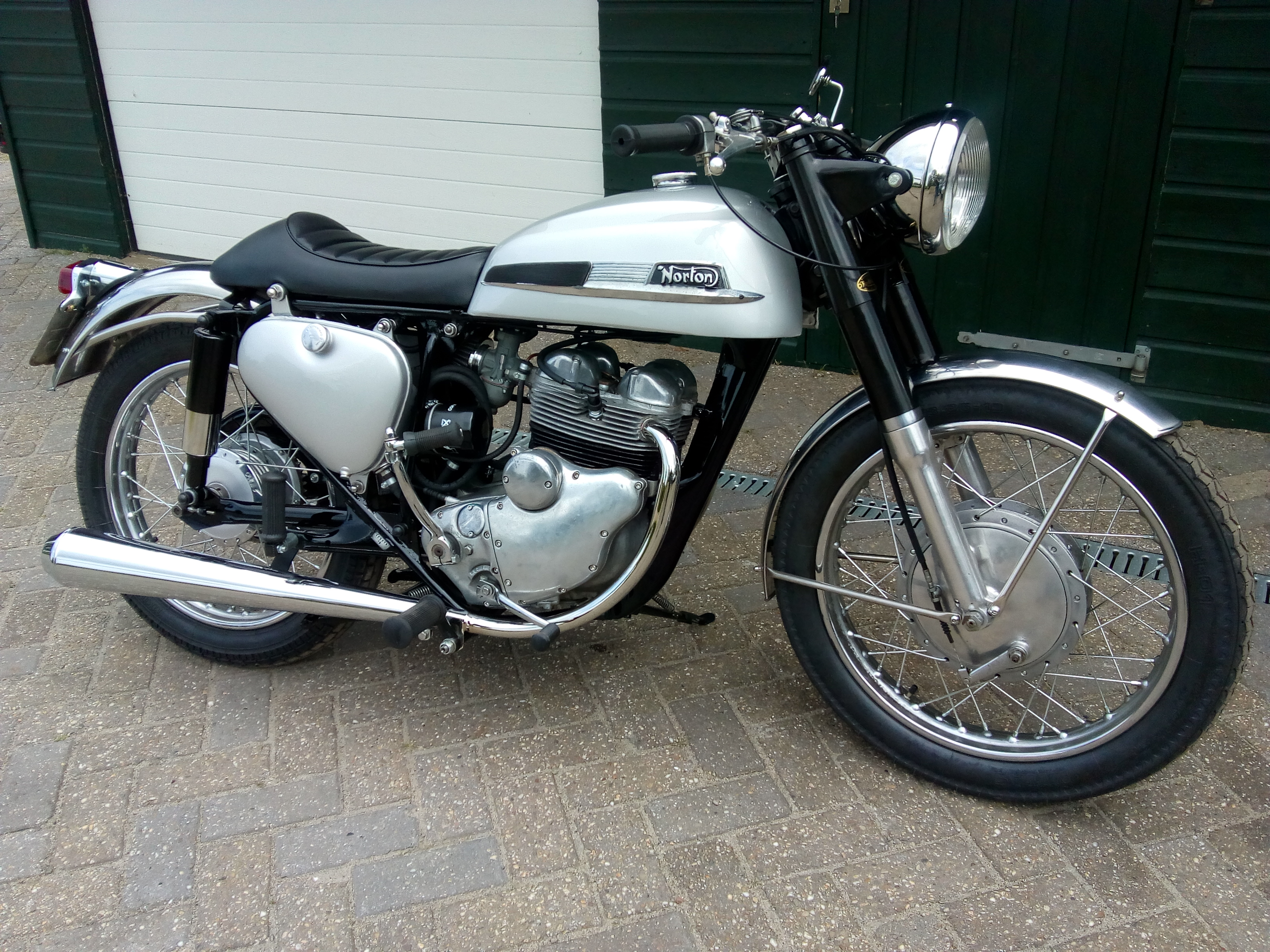

Sorry i cant help with the gearbox problems, but i just have to say thats a great looking bike Martin :-)

Hi Martin,

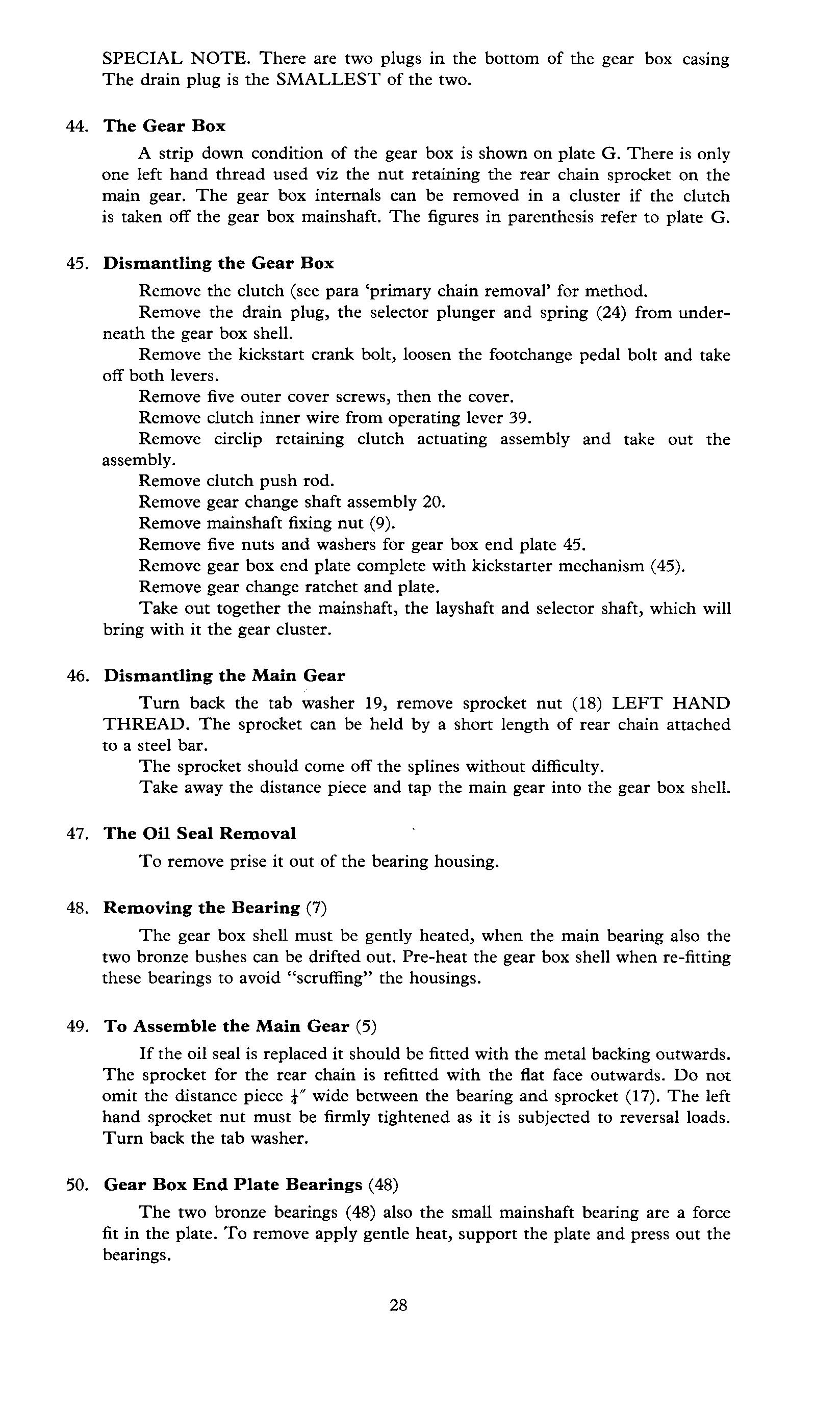

Welcome to Norton Navigator ownership - your bike is looking great and from the look of if close to being finished and on the road once you have sorted the gearbox out.   From your photograph it must be post engine number 106838 with the later gearbox so to help start identifying your gearbox fault I have scanned the relevant three pages of the Norton workshop manual and attached them below (apologies for which way up the pages are!).   You will see that I have highlighted an error in the drawing which is explained on a page not included but it says that the spacer No 34 has been inadvertently reversed in the drawing.

I would start by taking the outer cover off and checking if that is the problem.   If it isn't it is worth checking back through recent threads on problems with Navigator and Electra gearbox assembly and gear selection - you may well find the solution there with the alignment of the selection mechanism.   If you don't have a workshop manual yet I can strongly recommend the one published by Veloce Press ISBN 1-58850-069-1 (picture attached), I would be lost without it!

A final thought, looking at your gear lever it is mounted angled down too far.   I have found that if it is mounted like that it can stick against the outer casing and cause gear selection problems - before you inspect inside it might be worth repositioning it in the horizonal and see if that solves the problem.   Let us know how you progress, there are several gearbox experts in this Lightweight group who have had recent experience of similar problems who are sure to be able to help.

Nick

Hi Martin

welcome to lightweight ownership! I have an early Navigator and late Jubilee and have had both gearboxes apart, they are fairly straightforward if a bit fiddly. Let us know how you get on.

Dan

I believe Russel Motors in London have new selectors, Not sure about gears but you can ask! they are a bit old fashioned so you will have to call, no on-Line ordering!

Dan

As Dan has suggested Russell Motors May be able to help you, Phone number is 0207 228 1714

Think you will need to start this number with the UK code 44 and not use the first 0 when calling from outside the UK. Hope you get all you need Martin. Looks a Nice bike, and needs to be on the road. All the best.

Roger

Hi Martin,

Which bit was broken?

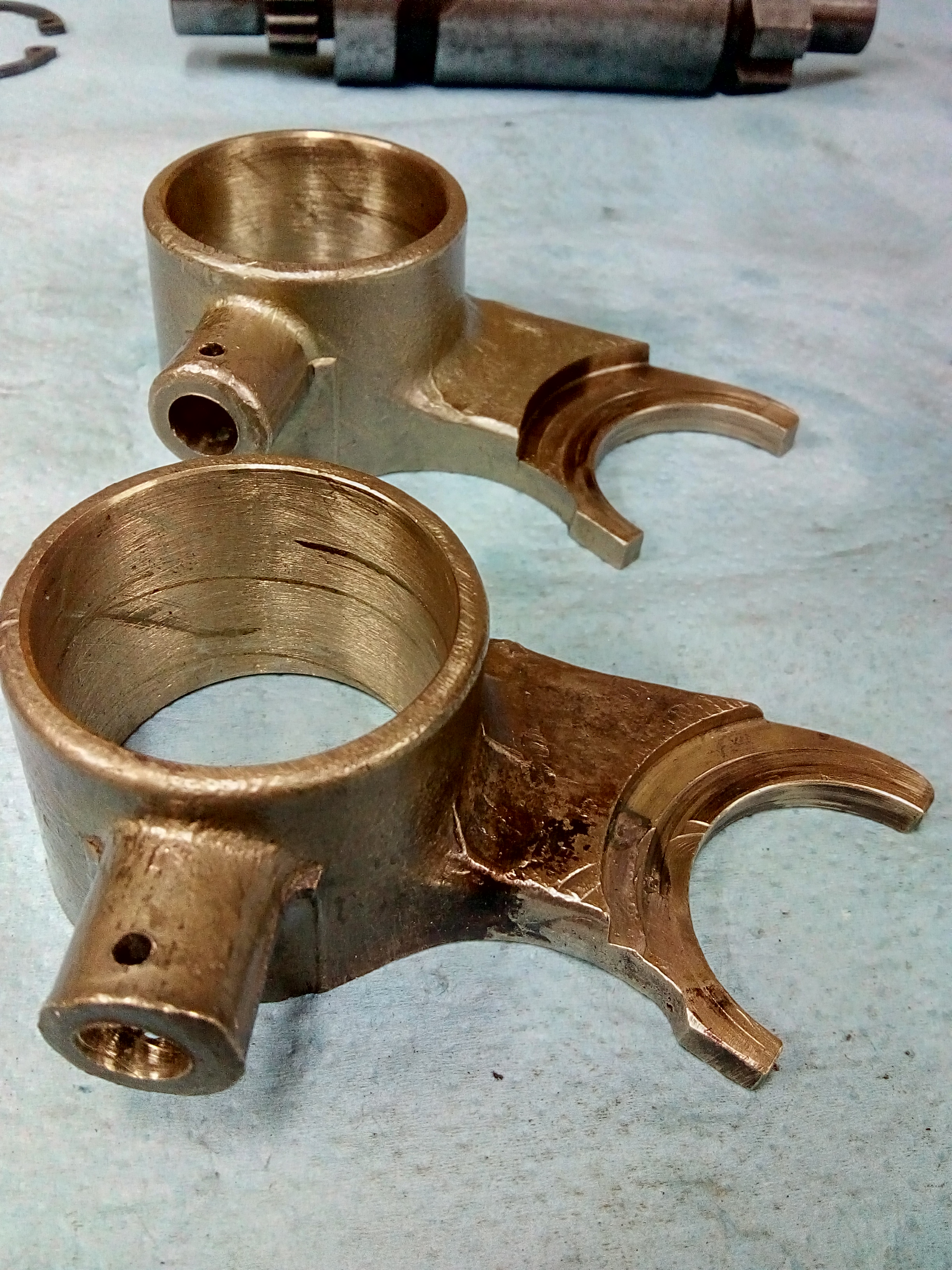

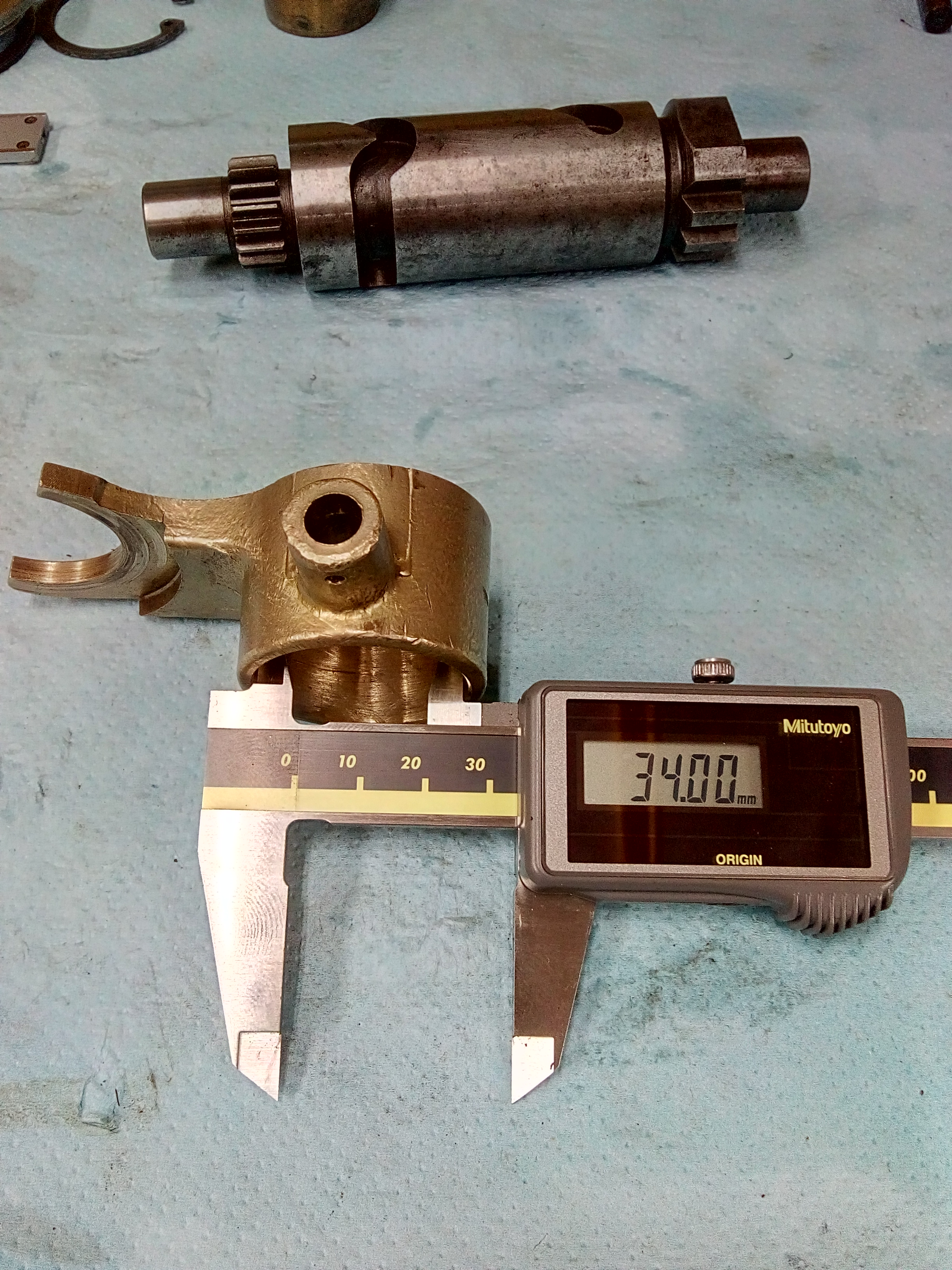

I cannot see your damage on the selector fork - can you supply better pictures to me at lighttwins@nortonownersclub.org, please?

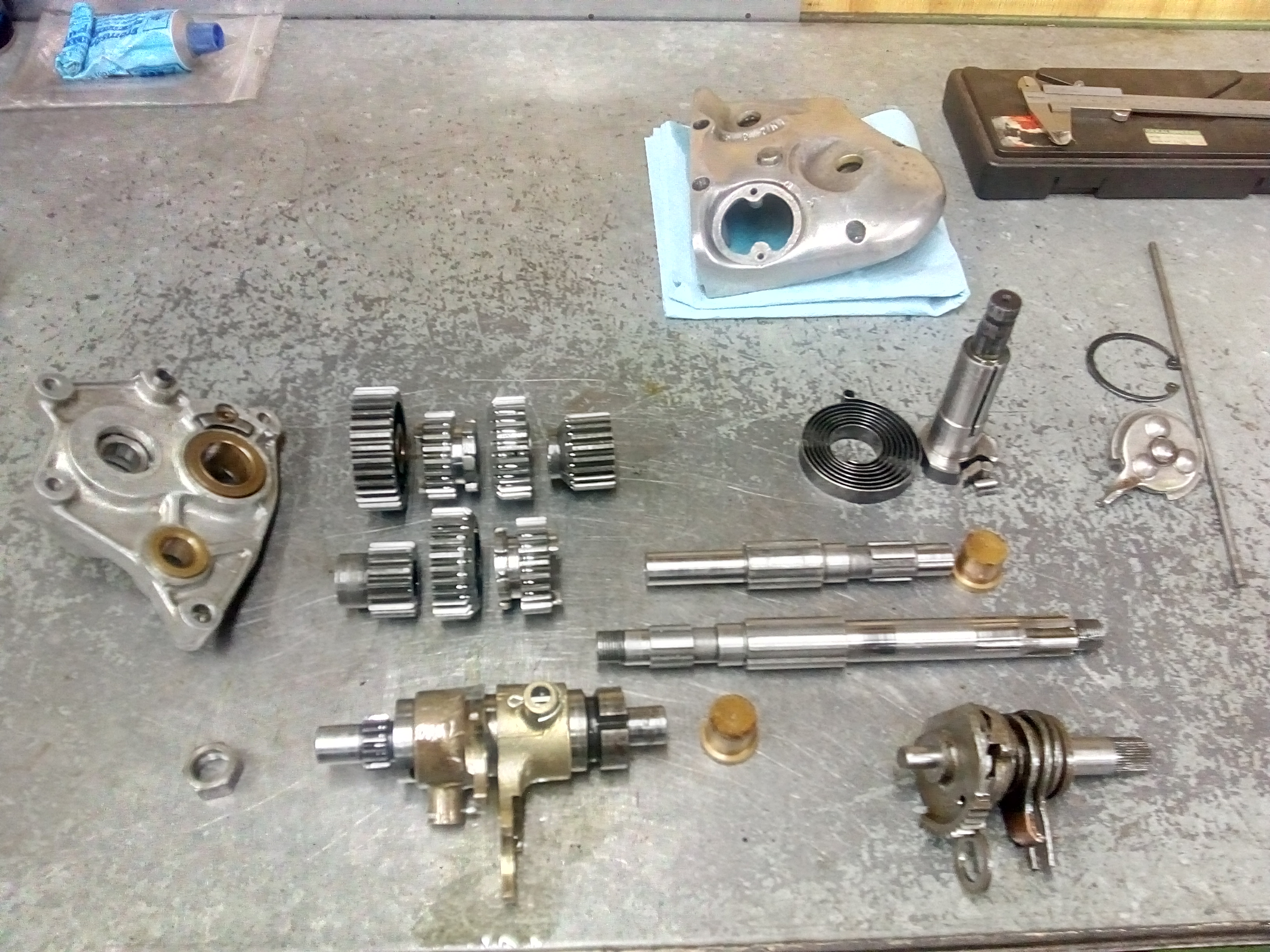

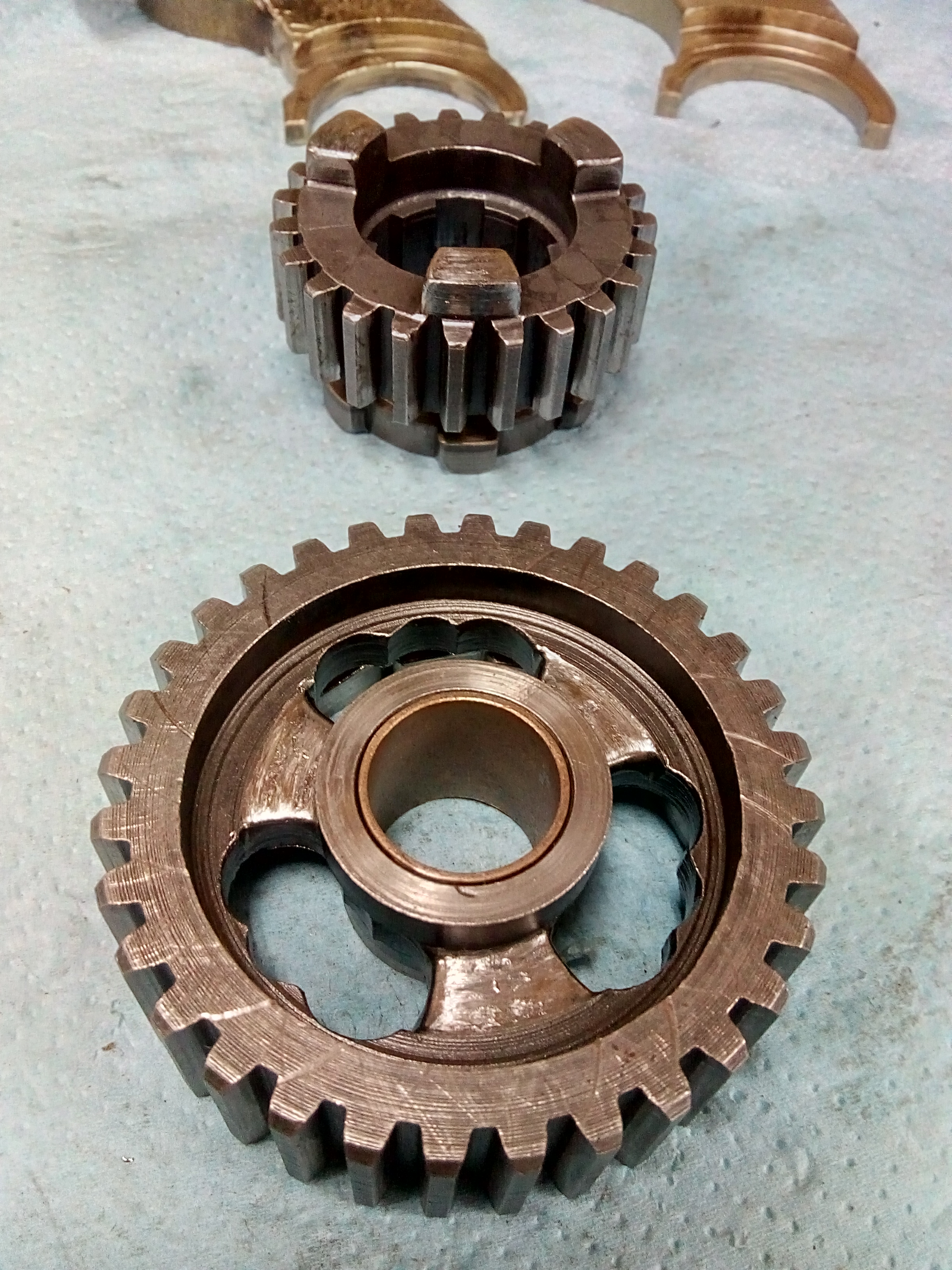

As has been mentioned above - the Layshaft 4th gear is drawn incorrectly in the manuals - you have it shown correctly on the table. Look for wear on the gear, as it will work fitted the other way round, but only half the teeth are in mesh. Your selector gears look past their best - but may still be useable - again, a clear picture would be good.

It looks like you have 1st gear the wrong way round? Can I see the non-kickstart side, please?

Hi Martin,

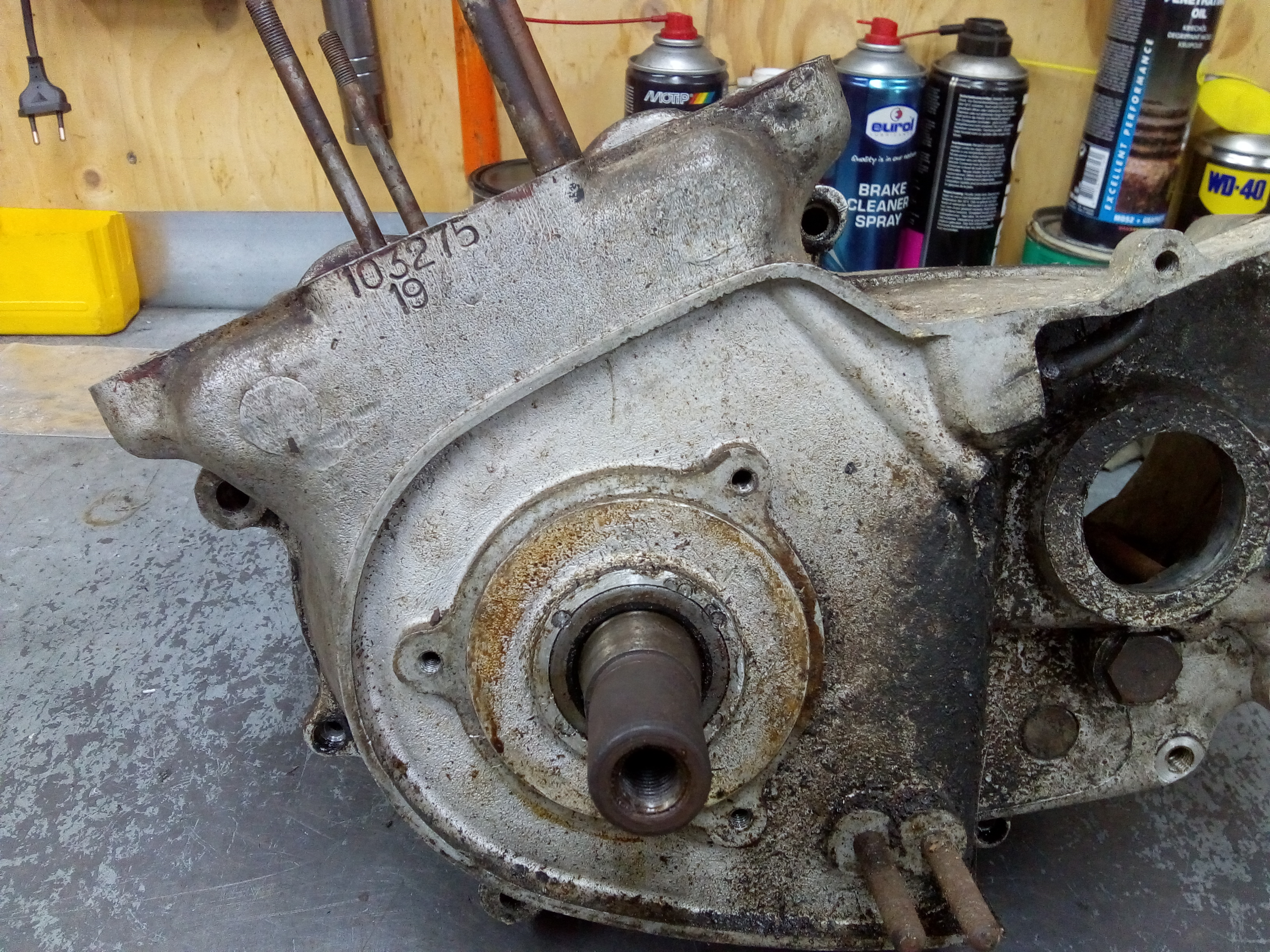

Its interesting that you have a Navigator with current engine 110933 (Sept ‘64), sat in frame 103275 (May ‘62) – and that you have the original engine 103275 as well.

Did you install the 110933 engine (which as you say, was a Jubilee), or did a previous owner do it?

The reason for asking, is that normally you cannot fit a later engine into an earlier frame, as the rear lower engine mounting bolt fouls the frame – as the engine is ‘fatter’ at that point. The centre stand spring (34) & hanger (40) are therefore different as well.

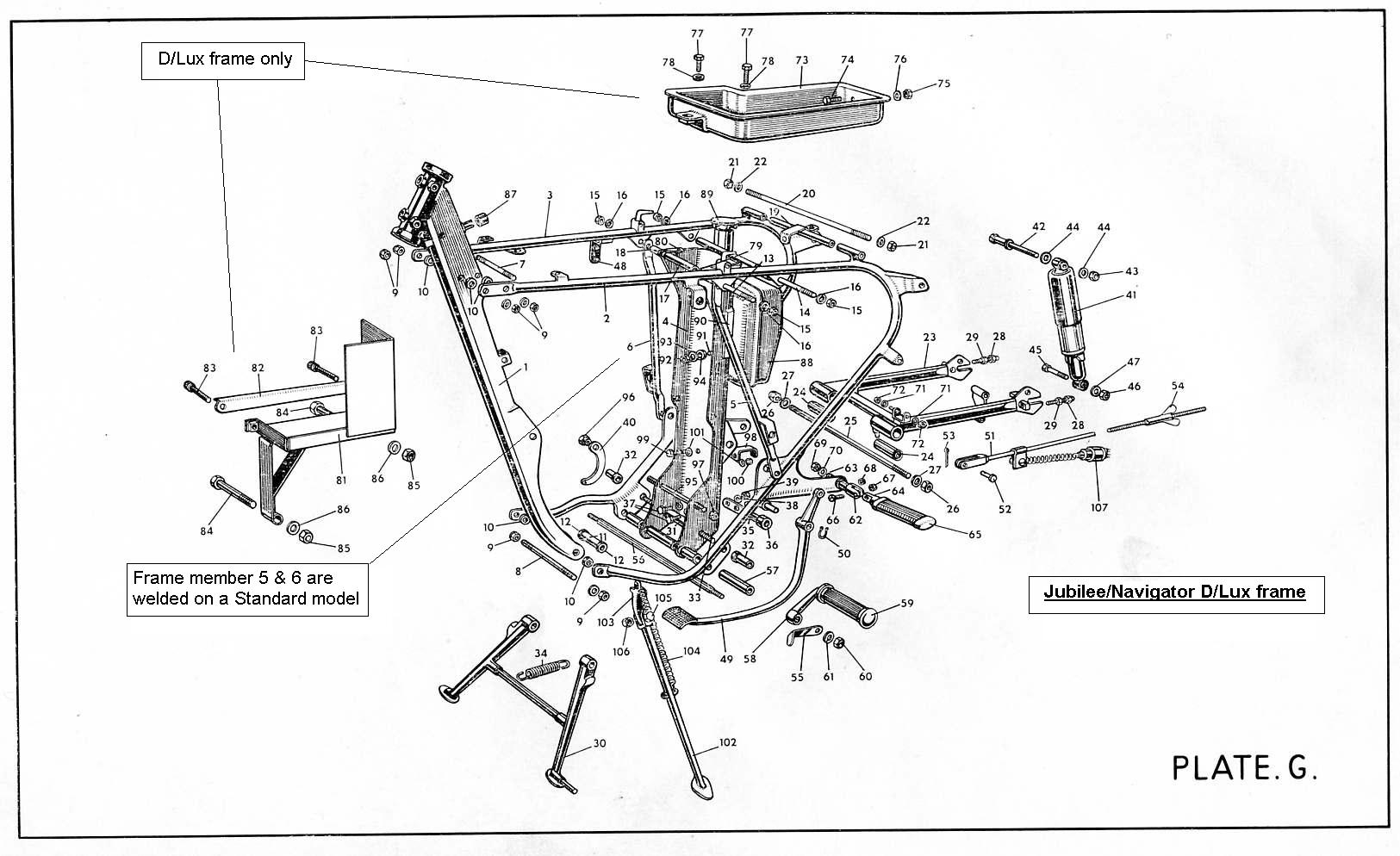

There is a solution available – and that is to use a later frame member – sometimes called the ‘centre channel or saddle post’ from a later bike – if the outer frame rails are kept for the frame number. Parts 4 and stud 95 are affected by this in attached frame picture.

Are you sure of the frame number? Can you send me a photo of it to lighttwins@nortonownersclub.org verity it is genuine for you?

Likewise, if your frame has been cut, or altered to fit this later engine, you will need to modify it again to accept the original engine. The good news is that all the engine components from 110933 will fit back onto 103275, except the clutch, clutch covers & gearbox – if you want to do that.

However, the oil pump was normally different between the two engines.
103275 would normally have a 3-start oil pump (& worm gear)
110933 would normally have a 6-start oil pump (& worm gear)

So there are a lot of things for you to consider!

Let me know if I can help.

Hi Martin, if it helps my experience with Russell motors is that they prefer to do business the old fashioned way which doesn’t include emails!   I find it is better to phone to make personal contact and explain what you are looking for and then to follow up with a written letter - ideally providing the part numbers which you can find in the appropriate spares book available from the NOC shop.   Once they have the part numbers they will go to their warehouse which is a good few miles away and search through their stock so there will always be a delay.   That said they have always responded in writing within a couple of days and posted the spares as soon as they receive payment by cheque.   Definitely worth the wait though!   Good luck.   Nick

Hi Martin,

I would persevere, they can be rather old fashioned in the way they do business and I have always found a phone call armed with the parts numbers is the best way to make progress.   You can buy a photocopy of the later 1964 onwards Jubilee and Navigator spares book from the NOC shop.  Click on the Lightweight twins icon then scroll down to 'spares lists' and you will find the right one listed there - I have attached a picture from the appropriate shop page which has the price and shop reference number LWT64.   I have found the spares list as invaluable.  Good luck!   Nick

Martin:

If you cannot find the parts in the UK or anywhere else in Europe, send me an email with the part numbers and I will check my sources here in Northern California.

My direct email address is   mikemill20@aol.com

Mike

Hi Martin,

You may by now have had excellent advice from Andy Sochanic.

I can't see from the photos and the wear any reason why the gearbox should lock up when selecting first gear.

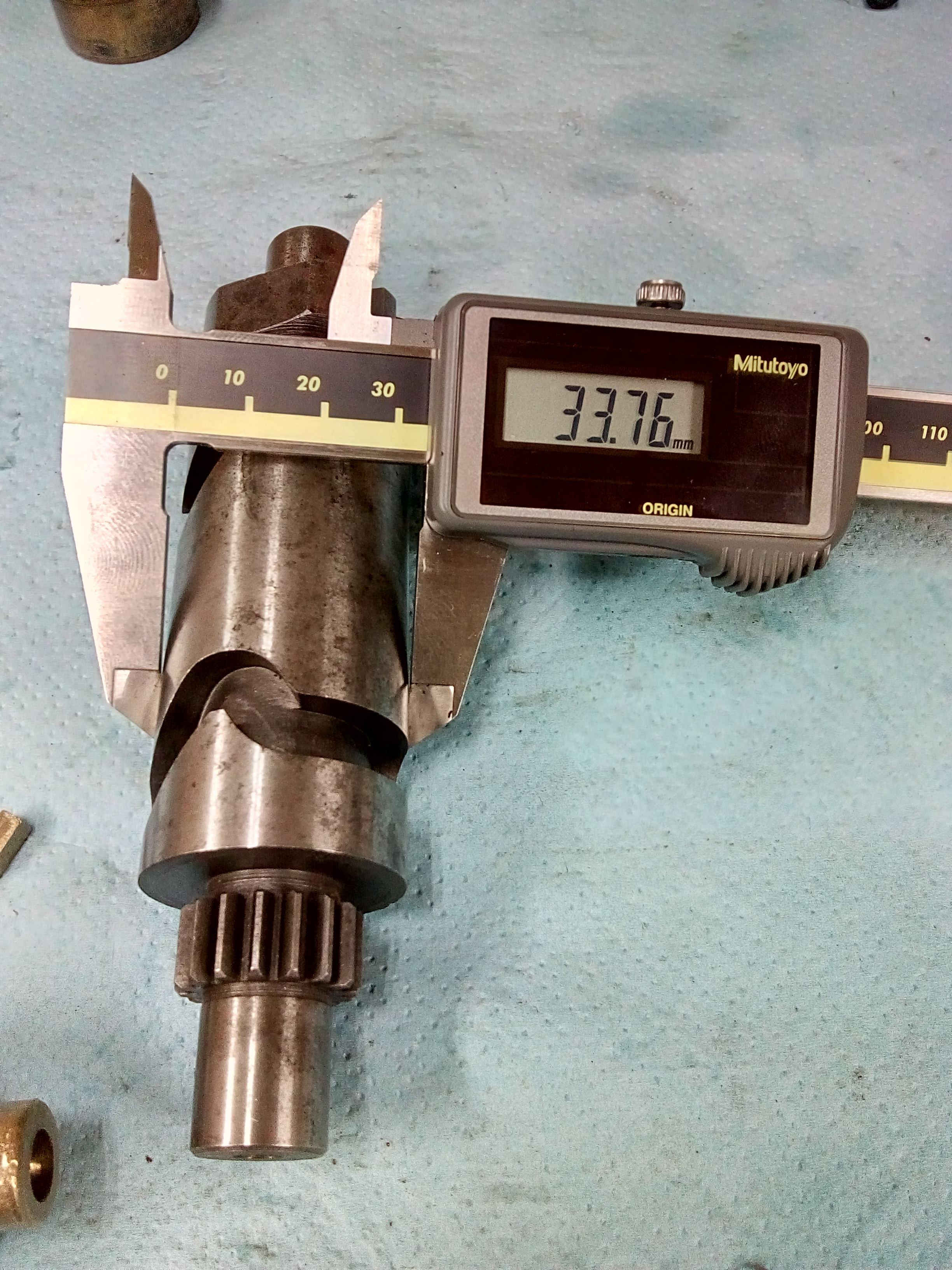

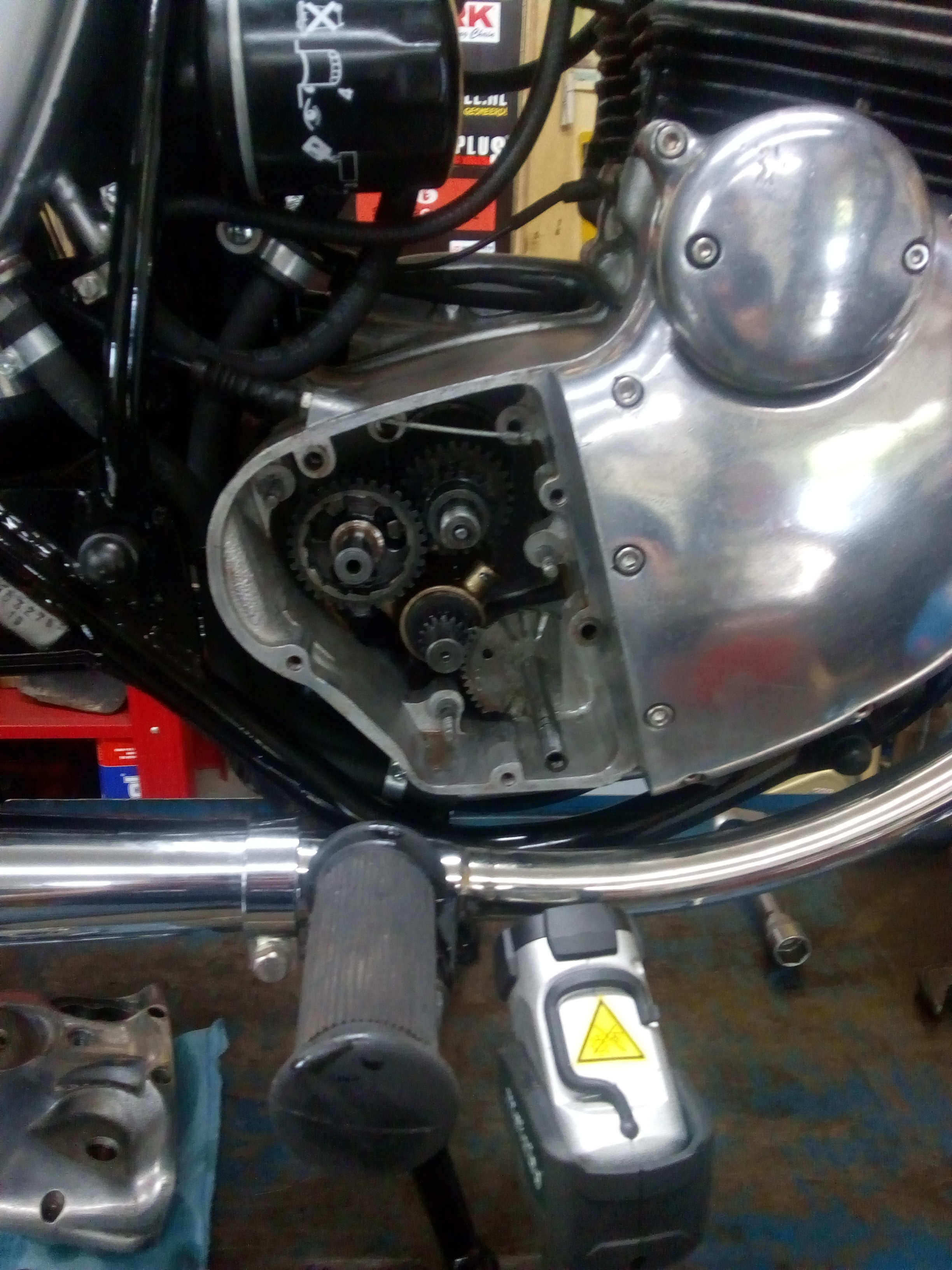

The selector drum has a gear on the end and one tooth is very faintly marked. From memory there is a similar mark on the driving quadrant gear of the gear indicator shaft. In the neutral position the marks are aligned.

In my experience, this is very difficult to achieve and to check. One tooth displacement will either give you gears 1 to 3 and 4 will not go in. Or gears N to 4 and 1st will not engage.

Even with the wear you indicate, total lock-up should not occur.

As you tighten the 5 securing nuts for the inner plate, check nothing is getting jammed. When secured, check you have a working kickstart and ratchet by slipping the kickstart onto the splines and rotating gently by hand. Layshaft free to turn? Mainshaft free? Sleeve gear/cluch free?

Make sure the gear selector shaft spring engages with the pin on the inner plate as you gently add the outer cover. Loose fitted you can check the gear action by slipping the gear lever onto the splines and try changing gear. Can you feel the detent coming out of neutral position and into 1st or 2nd  position? Is it about the same movement to change up a gear and down a gear? You may have to rotate the gearbox sprocket while changing gear or the dogs will baulk. Do this by having the bike on centre stand and rotate back wheel at same time as selecting different gear.

If you can't achieve 1st or 4th gear, there is nothing else for it. You must remove the inner plate and try again and make sure those gears are correctly aligned. If you find the original alignment marks, put white paint on each end of the marked gear, and mark the correct place on the quadrant gear too.

Even a worn gearbox should go through the shift pattern. I'm urging you to have another try.

Peter

Hello Martin,

All your components show a small amount of wear - But I would be happy to use them again.

Some good advice above already. Always keep the oil level up to the mark. And always use the NOC square section 'O' rings - well oiled on assembly. If they are dry, they grip amazingly!

Also, from what I can see, your inner cover looks in good condition - the kickstart 'stop' looks fine.

When assembling the gearbox, ensure your bushes (part 48) are a good fit, with no slop. If they are a good fit, then remove all traces of oil from the casing and the outside of the bush, apply Loctite bearing fit and press home, taking care to line up any oilways. Also ensure the bush at the end of the layshaft is pegged to ensure it does not rotate.

Also - remove the detent plunger (parts 24, 25, 26) to assist you - only replace them once the inner cover is safely on.

I have just noticed that Part 24 is incorrectly shown. It should be wedge shaped at the top - not pointed - and I cannot see yours on display. (My stuff is in a lock-up miles from here at present - photo to follow).

Looks like NOC Spares have them incorrectly identified as well. Early plunger (pointed) = PNo 042835 and the later one, like yours (wedge shaped) is PNo 040034.

Assembly instructions attached - from an Electra Owners Manual.

Let me know on lighttwins@nortonownersclub.org if you need any more information.

Did you manage to get selectors from Russel motors, the sold one to me at the end of last year.

Dan

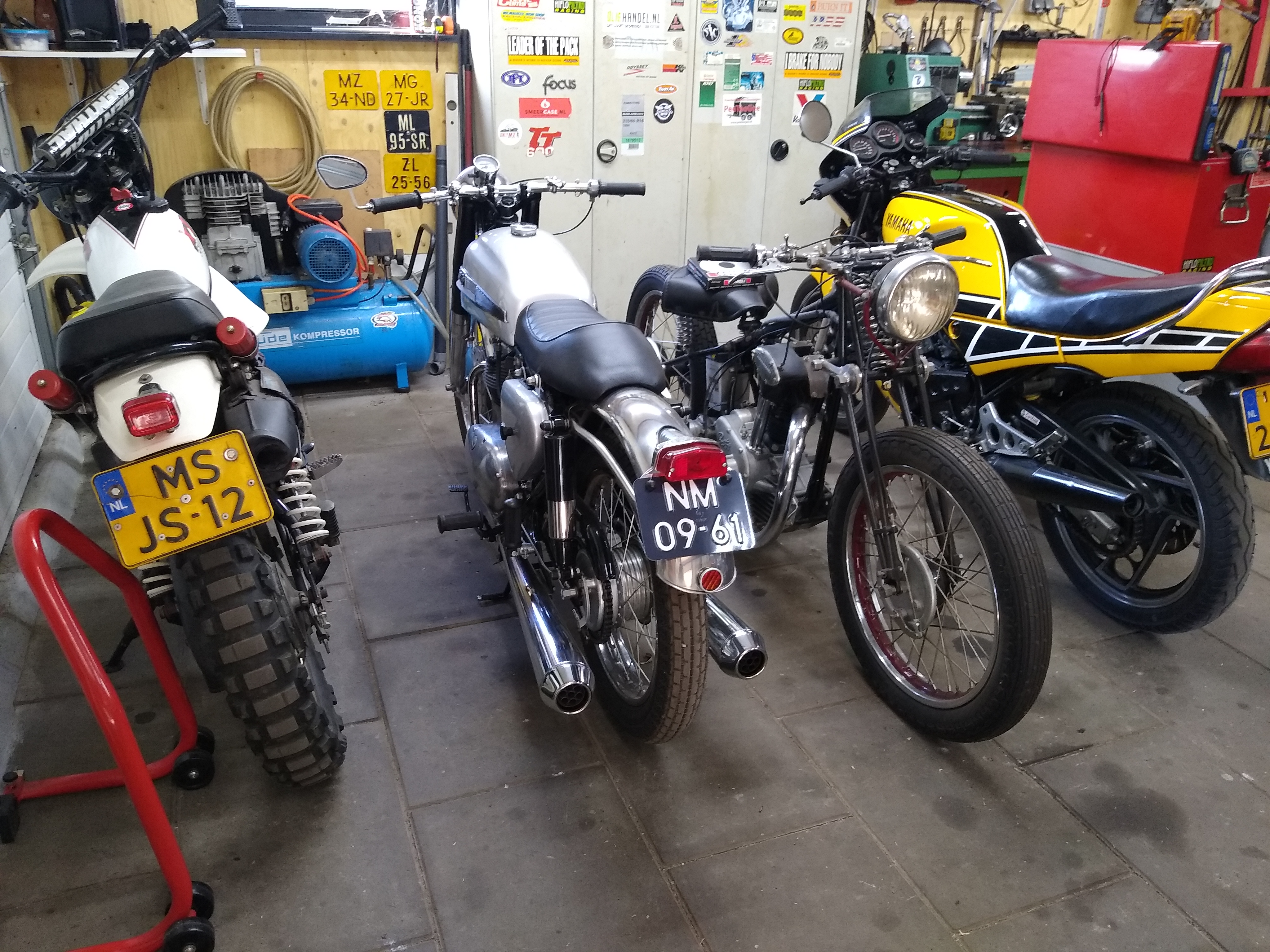

I know this is an old thread but wow! What good looking bike.  Martin, can I ask where you got the seat and mudguards?  Also is that a 7" headlamp that you've fitted?  All in all a thing of beauty!

Nick

Les at Russell Motors is long past any normal retirement date.  He is usually there on Mondays, Wednesdays and Fridays now.  Telephone is the best (perhaps only) way to get in touch.  Sadly, his two sons who run the modern motorcycle business aren't taking any interest in the older stuff.

I wonder if Les at Russell Motors could be persuaded to sell his stock to NOC spares given that  the future for the firm does not seem to be with old Nortons?

Could be a rare opportunity for NOC to acquire stock.

Dennis

PPS....

Your 1961/62 Parts List is appropriate to your frame and the original engine.

Your 1964 Parts List is appropriate for your currently installed engine.

Your frame may have been altered at the lower rear mounting to accomodate the later engine.

Your gearbox detent plunger should be wedge-shaped at the top, not pointed - as that is from the earlier engine. When I have one in my hands - I will take a photo.
