Sleeve gear

Hi John,

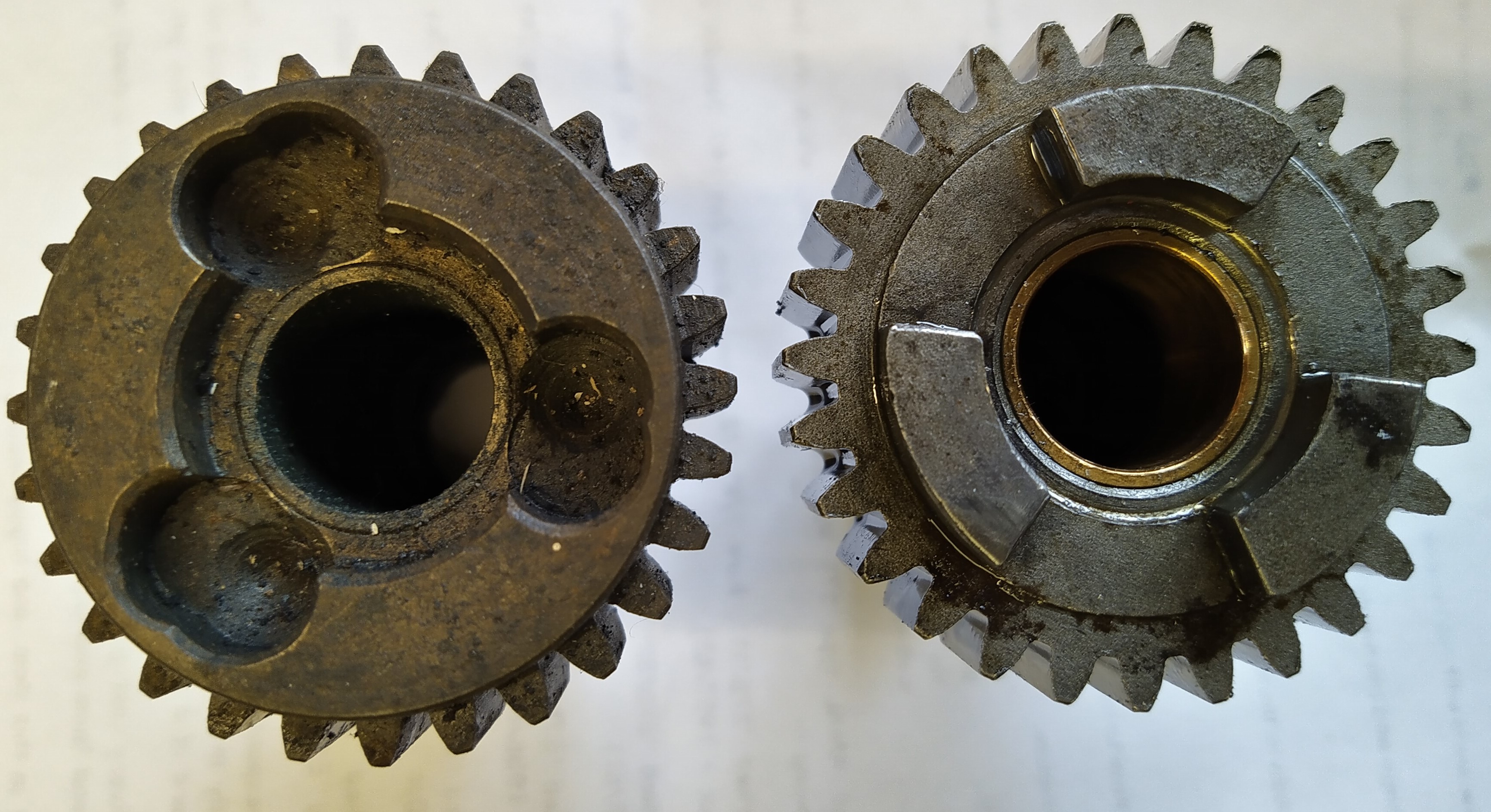

The sleeve gear with holes instead of male dogs is from the first Jubilee models.

This gearbox had a mainshaft with small diameter clutch spline that went right through the clutch centre. The mainshaft had a shoulder to locate the clutch centre and the clutch centre nut pulled the clutch up against the shoulder. The mainshaft diameter through both sleeve gears shown is the same. clutch splines are different.

The first Jubilee gearbox had no undercut on any gear dogs. The selector forks held the gears into mesh.

On launching the Navigator with 350cc engine the gearbox was strengthened and improved.

All gear dogs were undercut so that the gears held themselves together under load. Dogs were put on the sleeve gear. The clutch spline was increased in diameter. The clutch centre was given a 'washer' feature to locate the clutch against the end of the spline. Other clutch features, like the race plate, were redesigned.

The earliest design of gearbox and clutch was discontinued with launch of Navigator. Clutches are not interchangeable.

In 1964 the lightweight gearbox was further re-designed for the Electra introduction. A larger mainshaft diameter, selector mechanism, clutch spline etc. Total re-design.

You can fit the earliest gearbox in any Navigator or Jubilee pre-1964. The crankcase details are the same. Norton/AMC thought the earliest Jubilee gearbox too weak for the Navigator.

Likewise they thought the Navigator gearbox too weak for the Electra.

So we end up with three different and non-interchangeable clutch centre arrangements on lightweights. Three sleeve gear designs. Different gear clusters ... in fact a nightmare for most restorers cruising round the autojumbles.

John, stick your Navigator gearbox in your Navigator. Some parts in the earliest Jubilee gearboxes are common with Navigator upgrade, so you do have spares like selector forks and cam.

Best wishes

Peter

Hi John. Its vitaly important (while your gearbox ia apart) to check the condition of the laysfaft bush adjacent to the sleeve gear. Has it come out with your gearbox shafts? Can you remove it easily? Often, if you stick your pinky into it (selector shaft may need to come out first), it then comes out on its own.

The reason for asking you this, is that sometimes that bush has been known to spin in its housing. If it does, the results can be fatal, as the bronze bush will erode the aluminium its housed in.

1) Check that the oil way in the bush is in line with a straightened out paper clip - or bit of wire. If it is in line - you are in luck. It has not have moved in 60 years.

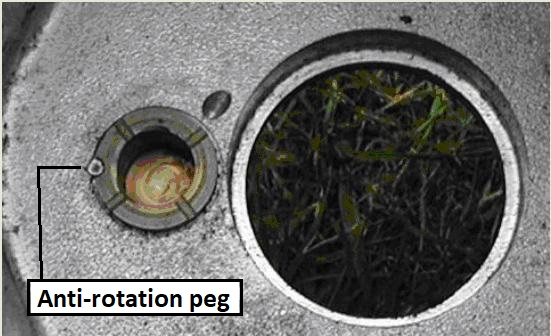

2) If at all possible, try & devise a method of locking it in place. The method adopted later in production was to peg it into place, with a bite cut out of the rim & and a locating peg placed alongside. With the engine out & dismantled, this will be an ideal opportunity to do this . see picture below:
