Does anyone know what thread these are? That is to say the male thread that screws into the case. The closest I can get is 26tpi which I guess makes it Cycle? But the thread on mine is pretty poor and it's difficult to tell.
does anyone have any spares or know where I can get them?
part number A84/23283
Dan
The diameter would be usef…
- Log in to post comments
Hi Dan, Just checked on my…
Hi Dan,
Just checked on my spare engine - the size is 3/16 and the thread appears to be BSF. I tried a 3/16th BSF die and it screws on easily by hand - I haven't got a 3/16th Cycle to test on but at some sizes they are the same TPI.
Sorry I don't have any surplus ones -in fact I am missing one on the spare engine.
Patrick
- Log in to post comments
Dan, the screw looks the s…
Dan, the screw looks the same as the point cover screw on a Commando. Can tell you tomorrow if they are the same. Will compare both screws.
Uli
- Log in to post comments
I've a feeling they might…
I've a feeling they might be 2 or 3BA
- Log in to post comments
Commando point standoff sc…
Commando point standoff screws are 2BA, also used on Triumphs and BSA's.
- Log in to post comments
Just checked the Jubilee i…
Just checked the Jubilee item again and it is 2BA. I have a 2BA die which fits perfectly- smoother than the BSF.
Odd thing about all this is that at this size BSF, Cycle, UNF and BA are all the same TPI. But I expect to a real engineer there are differences in the thread angle.
- Log in to post comments
No 15 on the diagram: http…
- Log in to post comments
Thanks I was hoping it mig…
Thanks I was hoping it might be the same as the commando ones, I'll add them to mondays shopping list!
- Log in to post comments
According to a thread comp…
According to a thread comparison chart I have in front of me:
major diameter TPI
2BA .184 31.4
3/16 BSF .186 32
3/16 Cycle 32
No wonder they are pretty similar
- Log in to post comments
I just checked my thread g…
- Log in to post comments
Previously Dan Field wrote…
- Log in to post comments
Hang on, thread confusion…
- Log in to post comments
28 tpi seems to = UNF, I g…
28 tpi seems to = UNF, I give up ....... At 2.50 each I'll buy a couple of commando ones and see if they fit ..... prob cheaper than faffing around with these gauges!
- Log in to post comments
Hi Dan, Just rechecked aga…
Hi Dan,
Just rechecked again and confirm that this one is a nice screw in fit in the housing, threads look good, and the 2BA die is a nice fit. In the picture yours looks a coarser thread but not much in it.
I tried a 1BA die and it's a very loose fit on the thread, but not a big size difference seemingly between them.
Patrick
- Log in to post comments
The shoulders of both are…
The shoulders of both are both 1.84, but definitely have different threads per inch. The threads of the bit that go into the cases measure as 1.75 but are very worn. I am waiting for the garage to warm up a bit before investigating further!
- Log in to post comments
Dan, today I tried the poi…
Dan, today I tried the point cover srews from my Commando- they are the same thread and size as the ones from the Navigator.
Pics to follow, forgot my mobile phone in the workshop..
- Log in to post comments
Thanks Ulrich, I'll get t…
Thanks Ulrich, I'll get them ordered!
- Log in to post comments

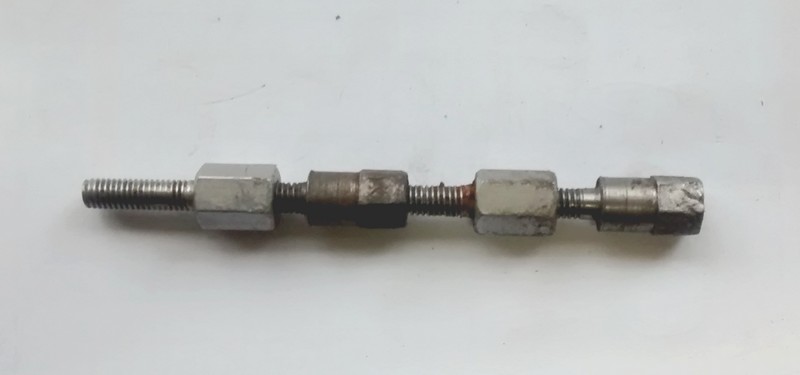

Dan, here are the promised…
Dan, here are the promised pictures!
Be careful tightening these screws, they shear off easily!
Had to bore out one on my Commando.
Attachments
img_20161106_135736851-jpg
- Log in to post comments
Thanks Ulrich!
Thanks Ulrich!
- Log in to post comments
The pillar screws arrived…
The pillar screws arrived from Andover Norton yesterday and I'm pleased to say that they fit! The only thing to watch is that the unthreaded shoulder at the top of stud is longer rhan my original and as I have a Boyer unit I needed a couple of washers to seat it properly. But a good result and my points cover is now attached.
I also fitted the speedo cable but sadly the speedo refuses to go over 10 mph so I need another one of those, I'll have to have a root around my boxes of bits.
- Log in to post comments
Previously Dan Field wrote…
Previously Dan Field wrote:
The pillar screws arrived from Andover Norton yesterday and I'm pleased to say that they fit! The only thing to watch is that the unthreaded shoulder at the top of stud is longer rhan my original and as I have a Boyer unit I needed a couple of washers to seat it properly. But a good result and my points cover is now attached.
I also fitted the speedo cable but sadly the speedo refuses to go over 10 mph so I need another one of those, I'll have to have a root around my boxes of bits.
Are you sure your bike goes over 10MPH!
- Log in to post comments
The diameter would be useful. Are using a thread gauge?.
With the pattern CPC Engineering would make them for you
