Hello I am looking for foto of inside of front brake plate how is made speedo gear weels inside drum. for speedo drive and so on,
Thanks
Tomas Tesar
brake plate
Hello Nicholas
Thanks for your foto. It is helpful for me.
Please do you have foto of front brake plate for inter ? i must make new brake reaction plate.
Thanks
Tomas
- Log in to post comments
Hi Tomas. The wheel was out…
Hi Tomas.

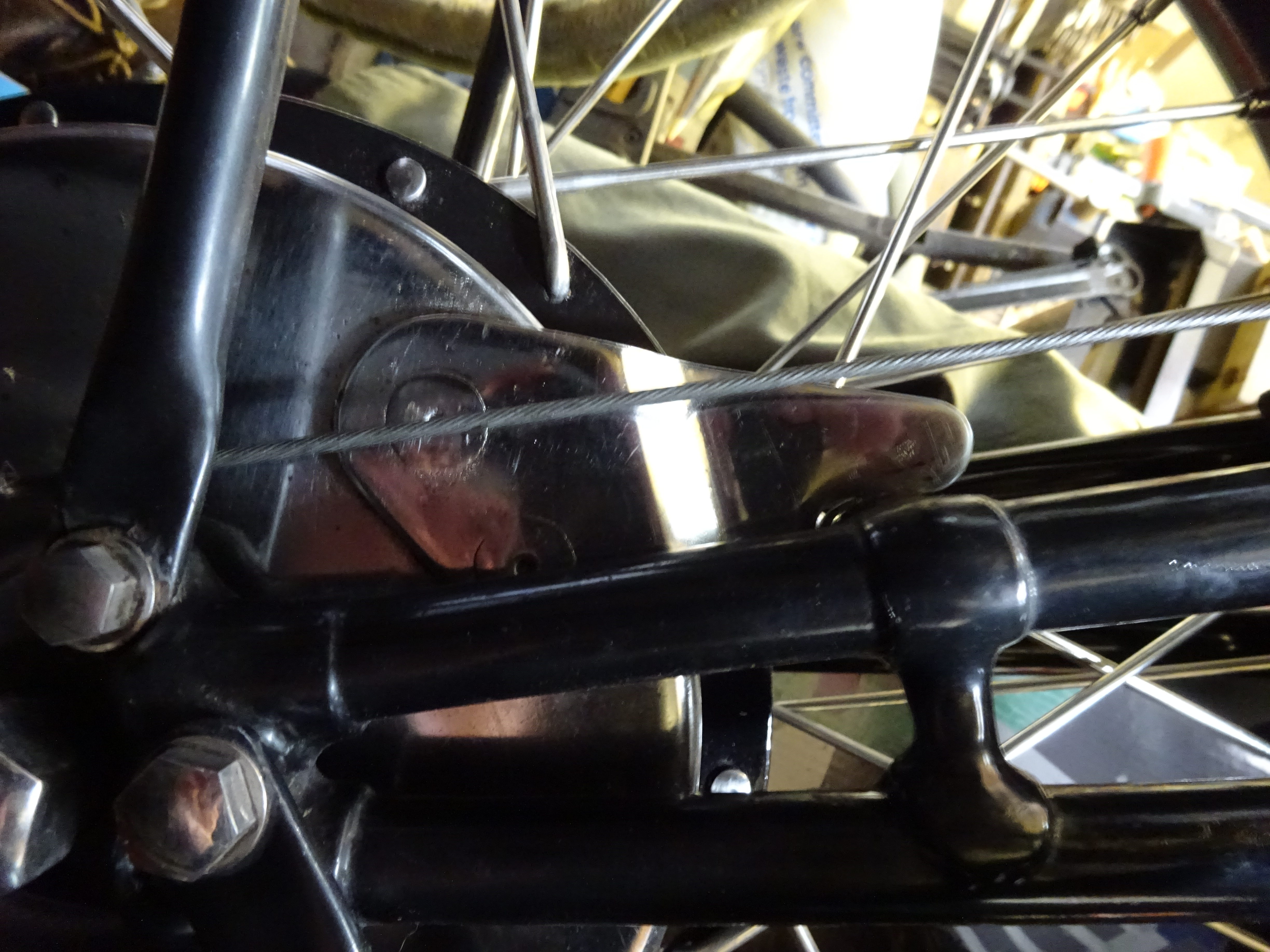

The wheel was out of the bike last summer. Unfortunately the bike is now at the back of the garage and I can't get to the offside at present but I have taken a photo that might help for moment. The bracket is rivetted in place and the approx overall measurement is 2 inches wide and 4 inches high. The bracket is slotted to allow the stop casting on the forks a positive location.
I will move the bike out of the garage by next week so that I can take better photos and give more accurate dimensions to help you.
Regards, Nick
- Log in to post comments
brake plate
Hi Nicholas
It helps me. When you have a time, please sand me thickness of bracket.
Thank you
Regards ,Tomas
- Log in to post comments
Brake backing plate data
Hi Tomas,

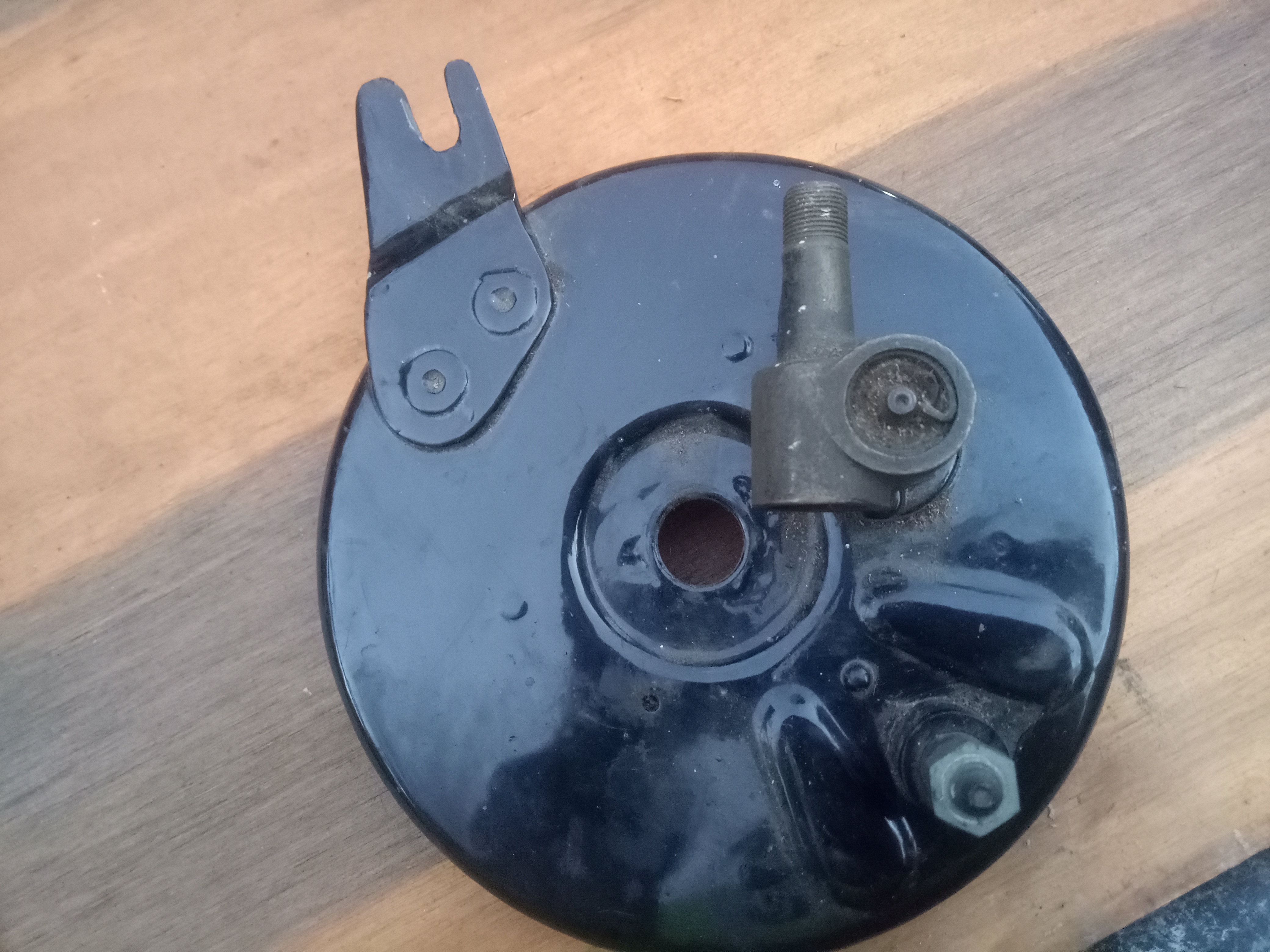

Attached are a couple of photos which may help you.

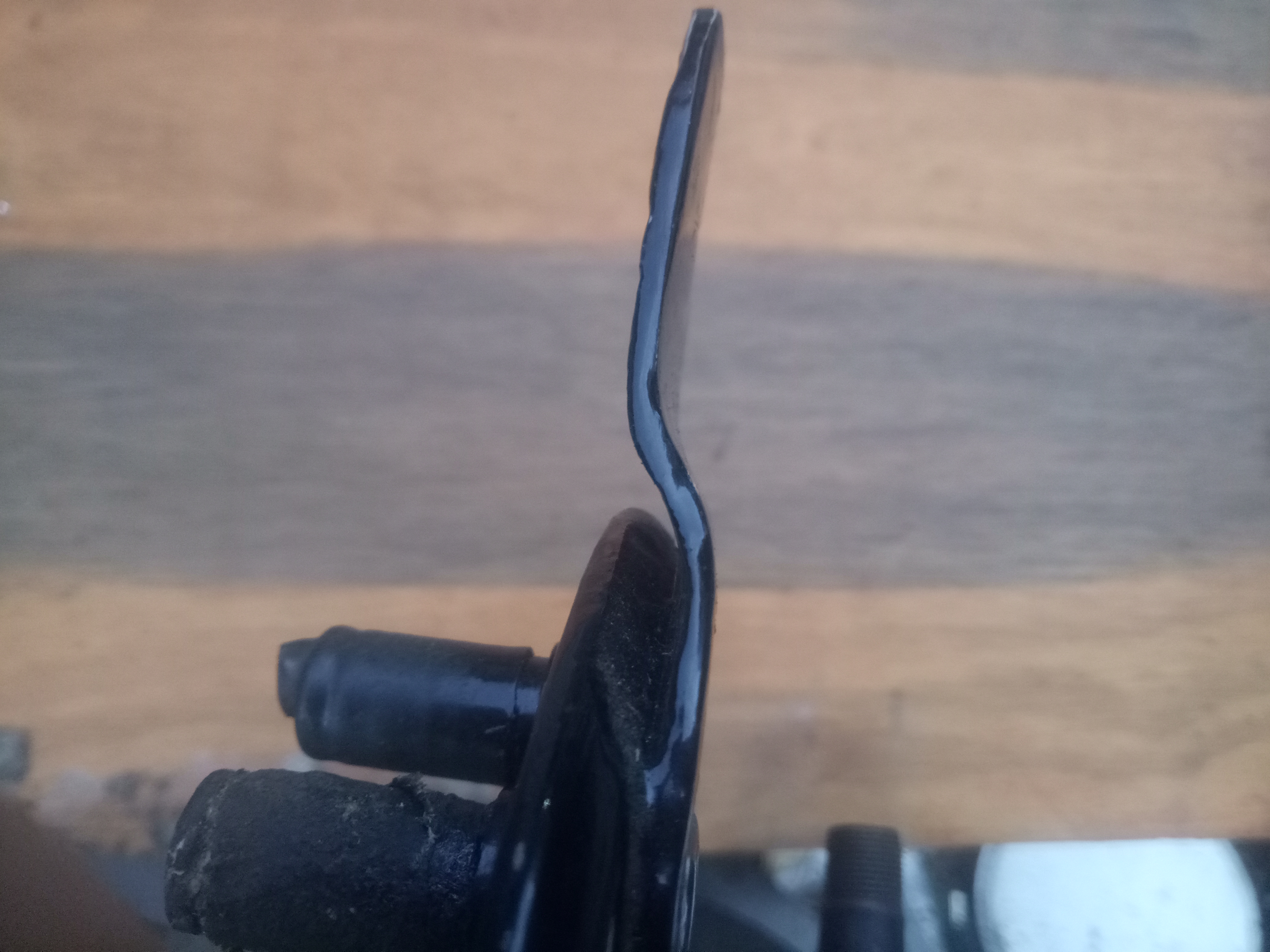

The bracket is 1/8 inches thick (3.1mm approx) and the offset is 1/4 inch (6.2mm approx).
- Log in to post comments
brake plate
Hello Ian
Thanks it helps me.
Best regards
Tomas
- Log in to post comments
Hi Tomas.

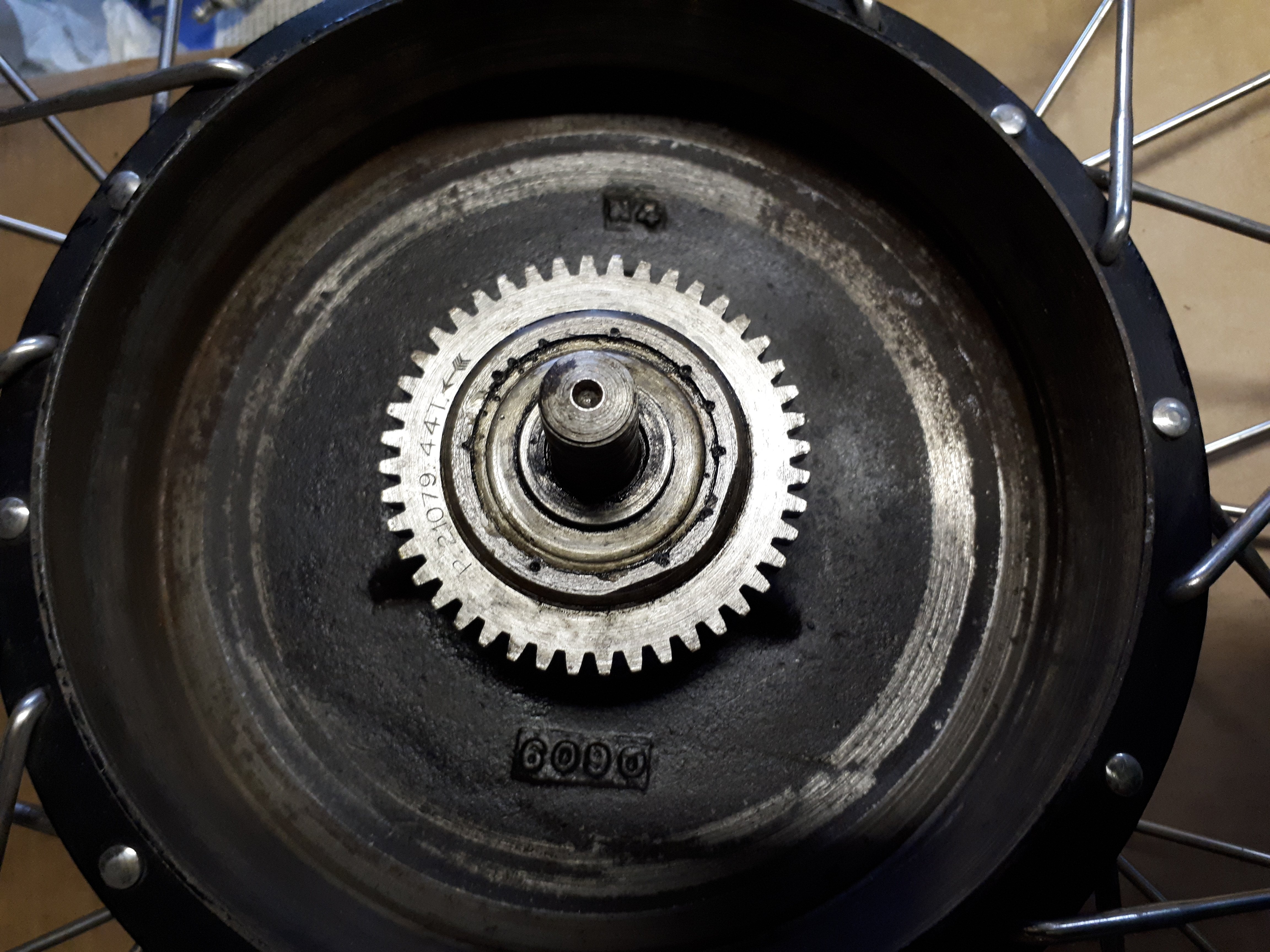

Hope this photo helps. !936 Inter front wheel.
Regards, Nick
