ES2 Clutch hub

... for this Robert, but what do you mean the spider has failed? In what way?

I can understand that it could be damaged by overtightening and may ride up the shaft but where does the clearance which allows rocking come from?

I will check previous posts.

... yesterday I did a lot more measuring, the following is of interest:

....clutch rubbers are new

... main shaft is out of true at end by 6 thou giving an oscillation of 12 thou.

... gap between rollers (bearings) and the inner face of their rolling track is 5 thou total, ie 2.5 thou each side

... gap between shaft splines and hub spline recesses is 6 - 8 thou.

... displacement of clutch back plate at the outer tip axially when rotating is about 5 mm.

... displacement of clutch back plate radially when rotating is about 3-4 mm.

My rough calculations show that the axial displacement of the outer tip of the back plate caused by the slop in the splines only will be about 50 thou (1-1/4 mm.), and about 100 thou (2-1/2 mm) when adding in the shaft bend.

I'm going to mark the end of the shaft so that I will see if fitting the hub to the shaft in different locations reduces or increases the run-out (the two different effects should add or subtract together if fitted differently).

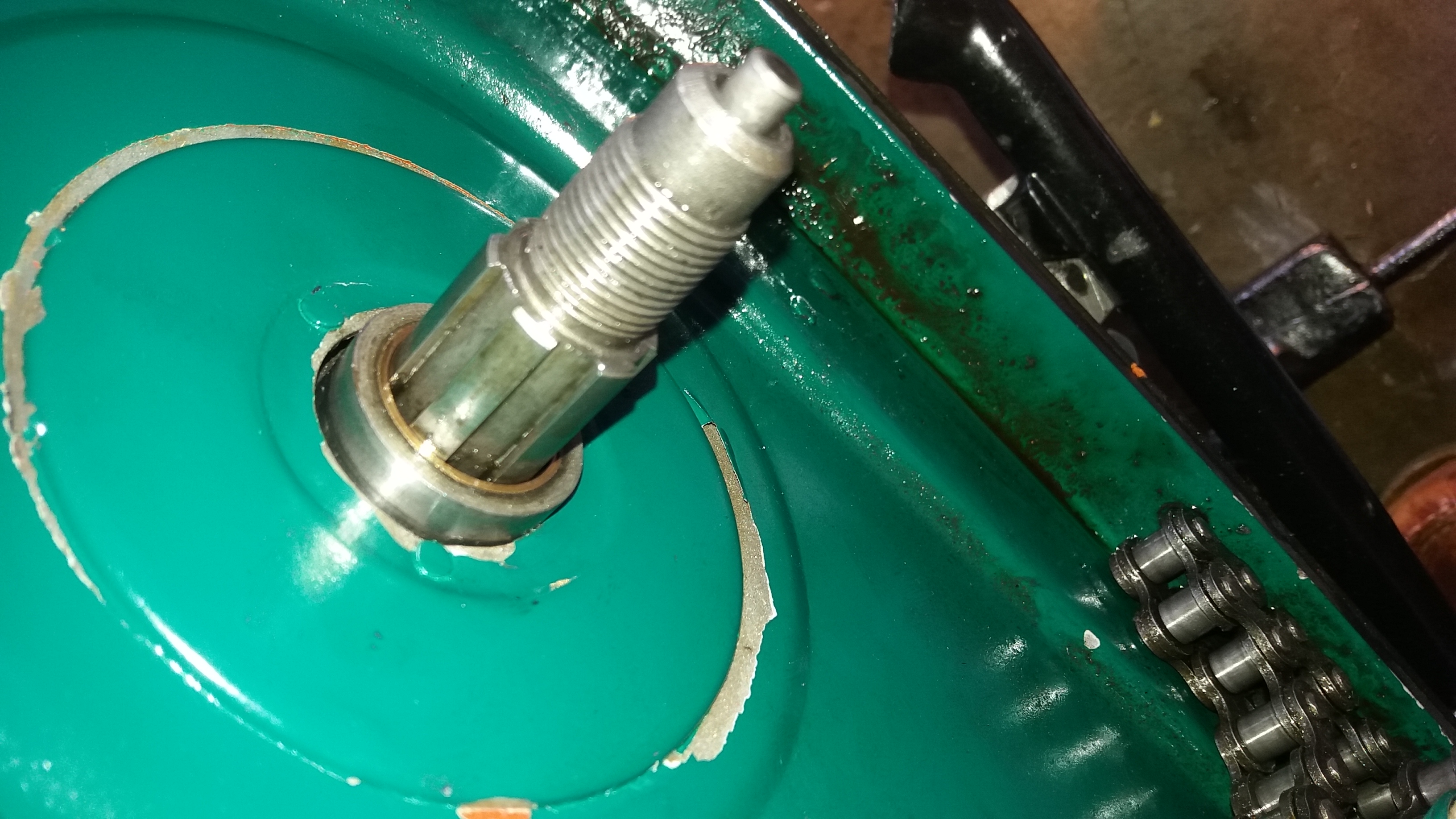

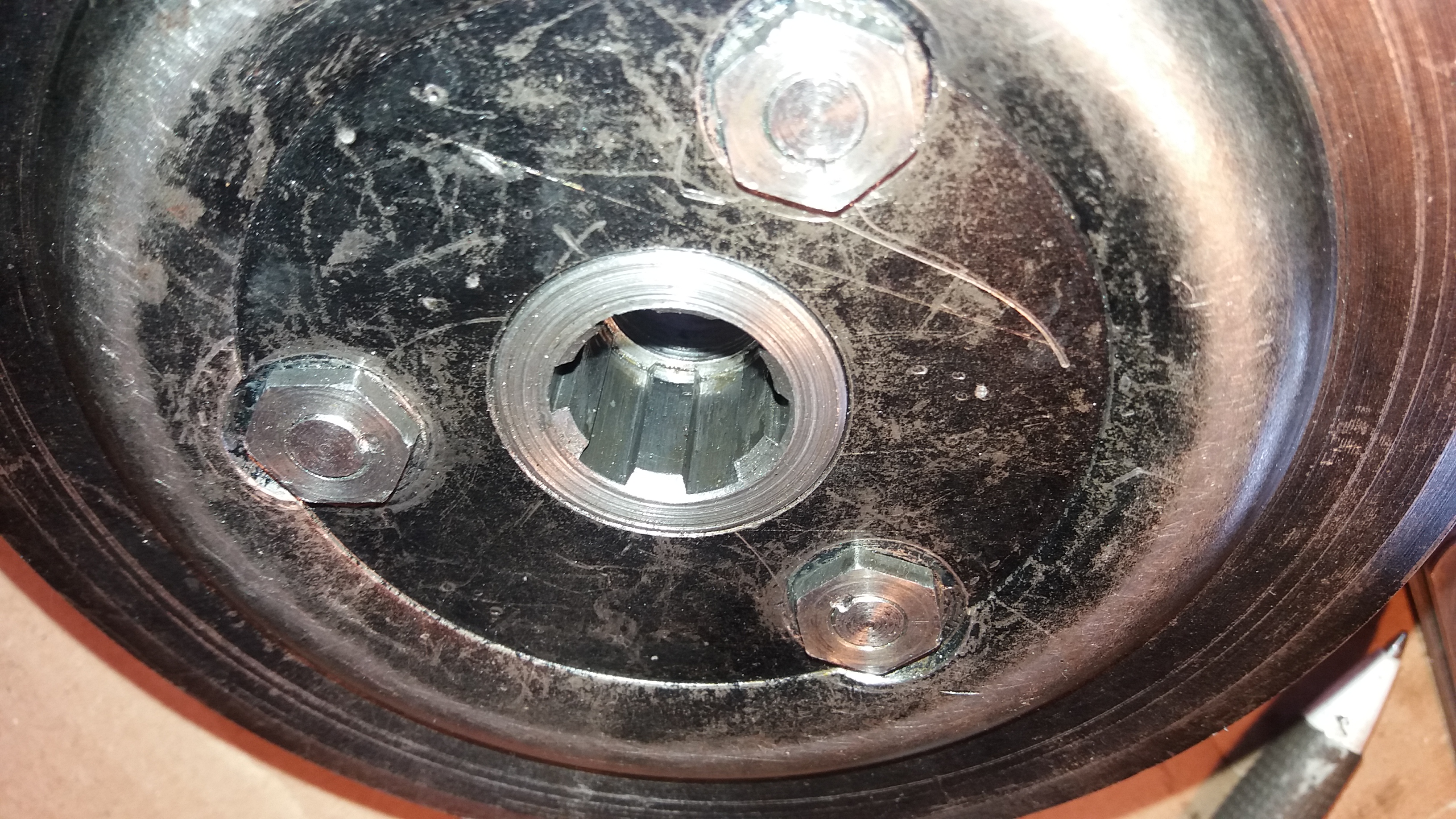

I cannot see anything wrong with the clutch center/hub, nothing seems to be wrong to my eye - photos attached.

I think that maybe the problem lies with these two causes, but I still don't see how the center can be so sloppy on the shaft splines.

Thank you both for your help, next installment soon.!

..

......for your useful comments.

You are correct Robert, I think that is my main problem.

The shaft out-of-true may be compounding the problem.

Another thing, turning the gearbox shaft by hand - it tightens up over about 1/4 of a full turn, is fine and loose for about 3/4 of the turn. Can this mean the outer bearing is out of line?  It won't explain the slight bend in the shaft.

Today I'm going to take the inner case off, try to get a better idea of how the center is fitting against the sleeve gear, to check that the two are not binding. It will also allow me to use a dial gauge to get better measurements for everything.

Which supplier would be best for a new shaft and center hub? Nv, AN, RGM, W?

Being in South Africa, I must make sure that if I buy new items, they fit together properly.

Regards Richard

Yesterday I spent a lot of time measuring and checking things.

First, the gap between the face of the spider/clutch backing plate to the sleeve gear face without any washer/shim is about 35 thou. However a shim had been fitted behind the spider of 1/16”  (62 thou) thickness, so the gap was – 27 thou. The spider was tightening up against the sleeve gear – why they didn’t lock solid I don’t know. The tightening up as the shaft/hub were rotated as mentioned above has gone.

Second, I measured the shaft for out of true, it has a bend in it of 0.32 mm (12 thou) giving an oscillation of 24 thou.

Thirdly, I made a mark on the end of the main shaft, made a mark on the clutch center/hub, fitted the two in line, tightened the nut reasonably and measured the distance from the outer edge of the clutch backing plate to the engine mounting plate. Rotating the clutch hub/shaft assembly, I measured this at 12 positions of the hub.

I then removed the hub from the shaft, refitted it at 90 deg to the shaft  mark, tightened the nut and measured again.

I did this with the hub/center at 180 d and 270 d to the shaft.

The results show that with the shaft/hub aligned at 0 d the runout is 2.6 mm.

Aligned at 90 d it is1.6 mm, at 180 d 0.9mm and at 270 d it is 1.5 mm.

This confirms my suspicions that the bend in the shaft either adds to the offset in the hub or opposes it depending how the two are aligned. The peak runout in each case occurred at the same position of rotation of the hub irrespective of where it was mounted to the shaft.

The offset in the spider/hub is greater than the offset due to the shaft bend

This would explain why when I first installed the clutch, this large offset was not present.

I will now remove the shaft from the box, check the straightness, see if it can be straightened.

I think the spider cannot be corrected as, in addition to it fitting loosely on the shaft, it seems to be misaligned, judging by the posts above.

I suspect I will need to buy a new shaft plus spider (to ensure they fit correctly and are true)

Thank you all for your invaluable tips.

Wait for the next exciting episode!

.. for your experience and tips.

.... interested, I have put the results of my measurements on the four graphs attached.

It can clearly be seen that the pattern of the run-out of the clutch is constant with the hub rotational position - always at 1,2 o'clock vs 7,8 o'clock irrespective of the shaft position. The rotational position of the shaft either adds or subtracts from the run-out.

When the hub is positioned on the shaft with the marks opposite the run-out is least, but still there (180 deg, 3rd graph).

This confirms that the inaccuracy in the hub/spider is creating a worse situation than the bend in the shaft.  It also shows that it is not a dent in the clutch plate face which is causing  the run-out, the hub/spider is misaligned.

I sort of knew this before, but it's nice to see it laid out, I enjoy doing it.

So I'm in for a new hub/spider, maybe I can straighten the shaft.

Thanks again for your help.

Richard

I have now measured the shaft and confirmed that there is a bend in it – about 8-10 thou giving an oscillation of 16-20 tho. The opinion is that it can be straightened.

However, before I do, I need to know if the splines on the clutch end of the shaft are ok.

It would help me enormously if someone can tell me if the measurements below match a good shaft and hub/spider which someone may have. There is no point bending the shaft straight if the splines are worn.

(There is some slight wear on one or two of them, but I don’t know if it is acceptable.)

The outside diameter of the splines on the clutch end of the shaft is 20.56 mm.

The id of the matching groove in the spider/hub is 20.65mm.  A difference of 0.09 mm (4 thou), enough to allow a noticeable  rocking of the hub.

The hub can also be moved (rotated) on the shaft slightly.

My dilemma is – which one is badly out, or is it both?

I look forward to your reply.

Thank you.

Richard

...with the information about size of shaft at the spider splines, and the corresponding id of the spider?

Thank you.

Accurate measurements in a lathe showed an offset of 11 thou (22 thou oscillation). in the shaft. It has now been straightened (how does a gearbox shaft get bent??) in a 5 ton press, giving an offset of 2 thou, (4 thou oscillation)  (We decided not to go any further!)

Now, with the clutch bolted up to the shaft and in position in the box, the radial run out of the backplate is 15 thou (30 thou oscillation).  Axial run out is also 15thou.

I think I could leave it as it is now, it would probably be useable but as it is apart, I'm going to strip the hub to make sure all surfaces are clean and the rubbers are fitted properly.

Thanks for all your help.
