Hi All,
Can any one possibly give me a simple explanation of how to time up the crankshaft with the half time pinion and the camshaft on a 99 dominator. I get the ten rollers apart bit on the chain, and i know about the 11o'clock position for the sprocket marks, and have the two punch marks on the gears meshed..
What is throwing me is, the Haynes manual says the ENGINE should be at T.D.C. when punch marks are aligned and the cam sprocket and intermediate sprocket are a 11 o'clock and clearly the engine is not at T.D.C. It's not far off but it's still not T.D.C.
where is the crankshaft position supposed to be in relation to position of all the marks, so i can double check. Or does it not matter at this stage.
If anybody has got any pictures or a diagram this would be a great help.
thanks,
Andy
simple and concise?
- Log in to post comments
I think I understand your …

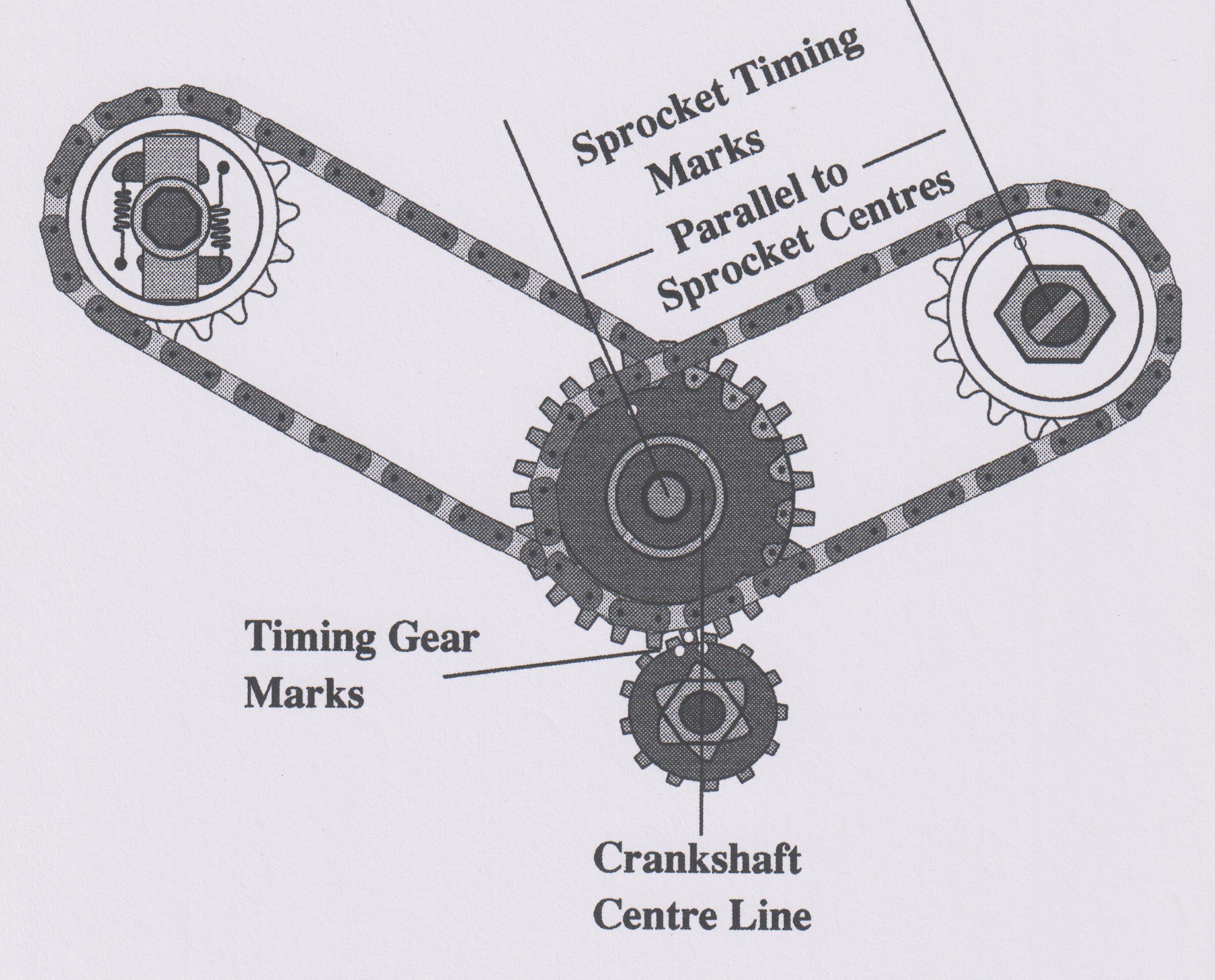

I think I understand your issue, the intermediate timing gear teeth that engage with the bottom gear thats on the end of the crank have teeth with dot marks ,these teeth must alighn with the dot marked tooth on the crank ( difficult to see so usually paint marked) . This positioning ensures that the crank is pretty close to TDC (but not critical to a few degrees). This then allows the normal cam chain setting up proceedure to follow. If all the parts are correctly made then the cam timing will be ideal or because of tollerances within a few degrees of ideal. You can sometimes do slightly better by setting the cam timing with a degree disc and juggling teeth but most don't bother.
- Log in to post comments

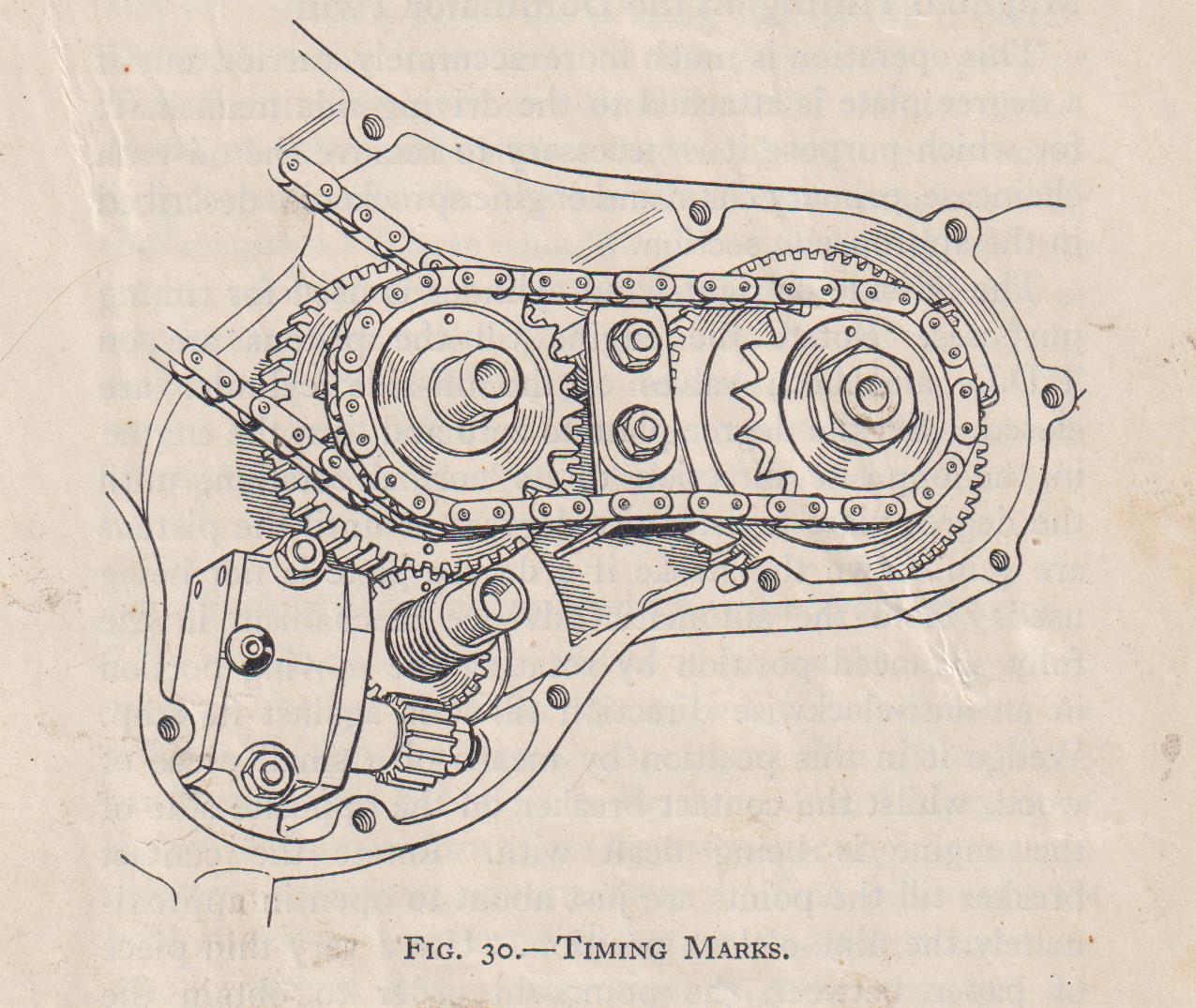

Pictures are always far…
Pictures are always far better than words ! ,someday I will master the computer , but do I have to enter second childhood to do it ?. Getting closer -----.
- Log in to post comments
and clearly the engine is not at T.D.C ??????
The mark on the cam sprocket at 11 oclock is the TDC position for the CAM which aligns with the push rods. The lifters and push rods aim toward the center of the head where they mesh with the rockers. TDC for the pistons is an entirely seperate issue but will also HAPPEN AT THE SAME TIME...
